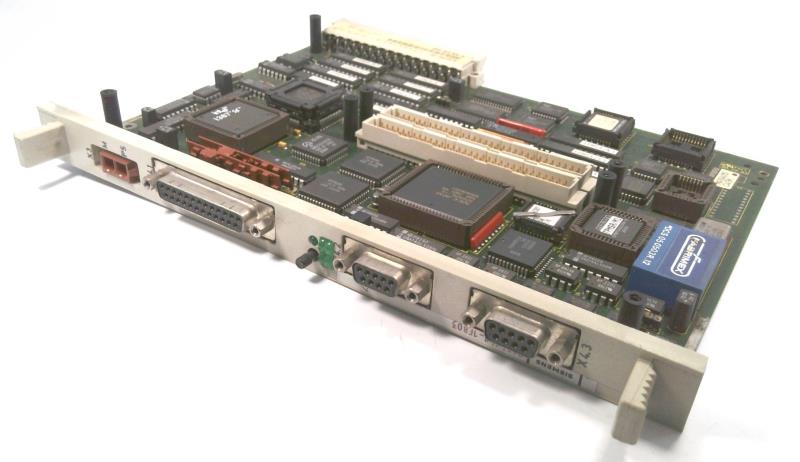

The Siemens part number 9AB4143-2EB20 is a SIBAS-KLIP digital I/O module, specifically designed for railway applications and derived from S5-95U modules. It is a digital input/output (I/O) module used in industrial automation systems, particularly in the Simatic S5 family of Siemens controllers. The module offers 16 inputs and 16 outputs, operating at 110 volts DC. The dimensions of the module are approximately 2.0 inches by 5.0 inches by 6.0 inches (5.1 cm x 12.7 cm x 15.2 cm), and it weighs approximately 0.3 kilograms or 0.66 pounds.
Technical Specifications
- Inputs: 16 digital inputs
- Outputs: 16 digital outputs
- Operating Voltage: 110 volts DC
Alarm/Error Codes
The module does not have specific alarm or error codes documented. It is designed for industrial automation and is likely to operate within the standard Siemens error code framework for the S5 family of controllers.
User Manuals
User manuals for this specific module are not readily available online. However, the Siemens S5 family of controllers has extensive documentation available on the Siemens support website, including user manuals and technical guides.
Troubleshooting
Troubleshooting for this module would typically involve checking the module's connections, power supply, and configuration within the larger industrial automation system. Siemens provides extensive troubleshooting resources for its S5 controllers, including troubleshooting guides and FAQs.
Programming
The programming of this module is likely to be done using Siemens' programming software for the S5 family of controllers, such as Simatic Manager or Siemens SIMATIC S5 PLC programming software. The specific programming details would depend on the configuration and usage of the module within the larger system.
Installation
The installation of this module would typically involve connecting it to the Siemens S5 controller and other relevant components within the industrial automation system. The module should be installed according to the manufacturer's instructions and any specific guidelines for the system in which it is being used.
