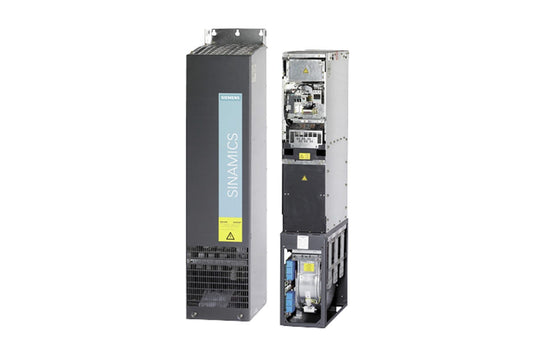

The Siemens part number 6SL3300-7TE32-6AA1 is an active interface module for the SINAMICS product line, which is a family of drives and motor control systems designed for industrial applications. This module is specifically designed for use in three-phase 380-480V, 50/60Hz systems with a power rating of 132 kilowatts.
Technical Specifications
The technical specifications of the 6SL3300-7TE32-6AA1 module include:
- Power Rating: 132 kilowatts
- Voltage: 380-480V
- Frequency: 50/60Hz
- Three-Phase: Yes
- Active Interface Module: Yes
Alarm/Error Codes
The Siemens SINAMICS product line, including the 6SL3300-7TE32-6AA1 module, uses a standardized system of error codes and alarm messages to indicate potential issues or malfunctions. These codes are typically displayed on the drive's control panel or communicated through a communication interface, such as a serial port.
User Manuals
Siemens provides detailed user manuals for the SINAMICS product line, including the 6SL3300-7TE32-6AA1 module. These manuals cover installation, operation, and troubleshooting procedures, as well as technical specifications and configuration options. The user manuals are available in various languages and can be downloaded from the Siemens website or obtained through authorized distributors.
Troubleshooting
Troubleshooting the 6SL3300-7TE32-6AA1 module typically involves a systematic approach to identify and isolate the problem. This includes checking the power supply, ensuring proper connections, and monitoring the module's status indicators. Siemens provides detailed troubleshooting guides and technical support resources to assist in resolving issues.
Programming
The 6SL3300-7TE32-6AA1 module can be programmed using Siemens' SINAMICS software, which is designed to configure and monitor the drive's settings and performance. The software allows users to set parameters such as speed, torque, and acceleration, as well as monitor the drive's status and performance in real-time.
Installation
The installation of the 6SL3300-7TE32-6AA1 module typically involves mounting the module to a suitable enclosure, connecting power and communication cables, and configuring the drive's settings using the SINAMICS software. Siemens provides detailed installation guides and technical support resources to ensure proper installation and setup.
Conclusion
The Siemens part number 6SL3300-7TE32-6AA1 is an active interface module designed for use in industrial applications, specifically in three-phase 380-480V, 50/60Hz systems with a power rating of 132 kilowatts. It is part of the SINAMICS product line, which is known for its reliability and performance in motor control and drive applications.
