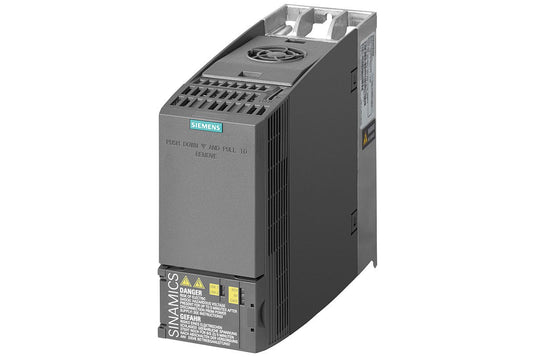

The Siemens part number 6SL3210-1KE15-8AB0 is a SINAMICS G120C AC drive designed for various industrial applications. The drive is rated for 2.2 kW of power with a 150% overload capacity for 3 seconds. It operates within a voltage range of 380-480V AC with a frequency range of 47-63 Hz. The device features an integrated filter of Class A and supports I/O interfaces with 6 digital inputs, 2 digital outputs, 1 analog input, and 1 analog output. It also includes the Safe-Torque-Off function and is compatible with USS and MODBUS RTU fieldbuses. The product has a degree of protection rating of IP20 and is designed for open-type installations. The dimensions of the drive are 196x73x203 mm (HxWxD).
Technical Specifications
- Rated Power: 2.2 kW
- Overload Capacity: 150% for 3 seconds
- Operating Voltage: 380-480V AC
- Operating Frequency: 47-63 Hz
- Integrated Filter Class: A
- I/O Interface: 6DI, 2 DO, 1 AI, 1 AO
- Safe-Torque-Off Function: Integrated
- Fieldbus Compatibility: USS, MODBUS RTU
- Degree of Protection: IP20
- Installation Type: Open Type
- Dimensions: 196x73x203 mm (HxWxD)
Alarm/Error Codes
The provided search results do not contain specific information on alarm or error codes for this Siemens part number. For detailed information on error codes or troubleshooting, it is recommended to consult the user manual or manufacturer documentation.
User Manuals
The user manual for the Siemens 6SL3210-1KE15-8AB0 AC drive is available on the Siemens website through the Industry Mall or can be obtained from authorized Siemens distributors.
Troubleshooting
Troubleshooting steps for the 6SL3210-1KE15-8AB0 AC drive are typically detailed in the user manual or manufacturer documentation. The manual provides guidelines for troubleshooting common issues and error codes. Additionally, Siemens technical support services are available to assist with troubleshooting and resolving any issues that may arise during the operation of the drive.
Programming
The programming of the Siemens 6SL3210-1KE15-8AB0 AC drive is typically done using the SINAMICS G120C software, which is designed to configure and monitor the drive's operation. The software is available on the Siemens website and can be downloaded for use with the drive.
Installation
The installation of the Siemens 6SL3210-1KE15-8AB0 AC drive should be done according to the manufacturer's instructions and guidelines. The drive is designed for open-type installations and requires a secure mounting to ensure proper operation and safety. The user manual provides detailed installation instructions and guidelines for the specific installation requirements of the drive.
