Description and Technical Specifications of Siemens Part Number 6SL3210-1KE11-8AB2

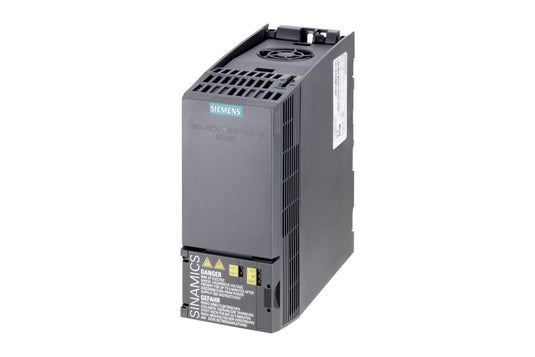

The Siemens part number 6SL3210-1KE11-8AB2 is a SINAMICS G120C drive, which is a high-performance motor control device designed for industrial applications. It has a rated power of 0.55 kW and is capable of handling 150% overload for three seconds, operating within a voltage range of 3AC380-480V with a tolerance of +10/-20% and a frequency range of 47-63 Hz. The drive features an integrated filter of Class A and an I/O interface with six digital inputs (6DI), two digital outputs (2DO), one analog input (1AI), and one analog output (1AO). It is designed with safety features to ensure reliable operation in various industrial settings.
Alarm and Error Codes
The specific alarm and error codes for this drive are not provided in the available documentation. However, it is common for industrial control devices like the SINAMICS G120C to use standardized error codes, such as those defined by the IEC 61131-3 standard. These codes typically indicate specific faults or malfunctions within the drive, and troubleshooting often involves checking the error code to identify the issue and take corrective action.
User Manuals
The user manuals for the SINAMICS G120C drive are available on the Siemens website, specifically in the Industry Mall section. The manuals provide detailed instructions on installation, configuration, and operation of the drive, as well as troubleshooting and maintenance procedures.
Troubleshooting
Troubleshooting for the SINAMICS G120C drive typically involves identifying and addressing potential issues that may affect its performance or reliability. These issues can include electrical faults, mechanical problems, or software errors. The user manuals and documentation provided by Siemens offer guidance on troubleshooting and error handling, including steps to diagnose and resolve common problems.
Programming
The programming of the SINAMICS G120C drive is typically done using Siemens' SIMATIC S7-1200 or SIMATIC S7-1500 controllers, which are configured using the SIMATIC STEP 7 software. The drive supports various programming languages, including Ladder Logic, Function Block, and Structured Text, allowing users to create custom control programs for their specific applications.
Installation
The installation of the SINAMICS G120C drive typically involves connecting it to a power supply, motor, and control system. It should be installed in a well-ventilated area, away from any sources of heat or moisture. The drive should be properly secured to prevent movement or vibration during operation. Additionally, the user manuals provide detailed instructions on the installation process, including electrical connections and wiring requirements.
