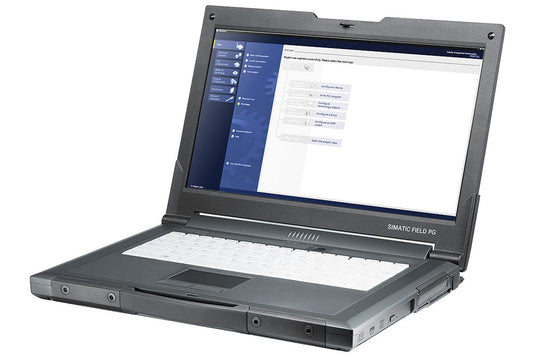

The Siemens part number 6ES7716-2CA00-0CB2 is a SIMATIC Field PG M4 Premium plus device. This product is designed for industrial use and is part of the SIMATIC Field PG M4 series, which is a line of industrial computers and field devices that provide advanced processing capabilities and connectivity options for industrial automation applications.
Technical Specifications
The technical specifications of the 6ES7716-2CA00-0CB2 include:
- Processor: Core i7-35X0M (4M cache, 2.9GHz, up to 3.6GHz with Turbo-Boost Technology)
- Optical Drive: DVD RW
- Graphics: HD Graphics 4000
- Storage: Solid State Drive (SATA 300 GB)
- Display: 15.6'' with HD Ready (1366 x 768) resolution
- Keyboard: QWERTY with German language support
- Power Cable: Supports Germany, France, Netherlands, Spain, Belgium, Austria, Sweden, and Finland
- Operating System: Dual-boot configuration with Windows XP Professional SP3 and Windows 7 Ultimate SP1, both 64-bit
- RAM: 8 GB
- Software: Includes licenses for STEP7 Prof Combo (V13/2010) and WINCC Advanced Combo (V13/WINCC FLE)
Alarm/Error Codes
There is no specific information available on alarm or error codes for this product. Alarm and error codes are typically specific to the device model and can vary depending on the application and configuration. For troubleshooting purposes, it is recommended to consult the user manual or contact Siemens support directly.
User Manuals
The user manual for the 6ES7716-2CA00-0CB2 is not readily available online. However, it can be obtained from Siemens or other authorized distributors. The user manual should provide detailed instructions on how to use and troubleshoot the device.
Troubleshooting
Troubleshooting procedures for the 6ES7716-2CA00-0CB2 are not publicly available. For troubleshooting assistance, it is recommended to consult the user manual or contact Siemens support directly. They can provide specific guidance based on the device's configuration and the issues encountered.
Programming
The programming of the 6ES7716-2CA00-0CB2 involves using software tools provided by Siemens, such as STEP7 Prof Combo (V13/2010) and WINCC Advanced Combo (V13/WINCC FLE). These software tools are designed to configure and program the device for specific industrial automation applications. For detailed information on programming, refer to the user manual or contact Siemens support.
Installation
The installation of the 6ES7716-2CA00-0CB2 involves connecting it to a power source and configuring it according to the specific application requirements. The user manual should provide detailed instructions on how to install and set up the device. It is recommended to follow the manufacturer's guidelines for installation to ensure proper function and to avoid any potential damage to the device or surrounding equipment.
