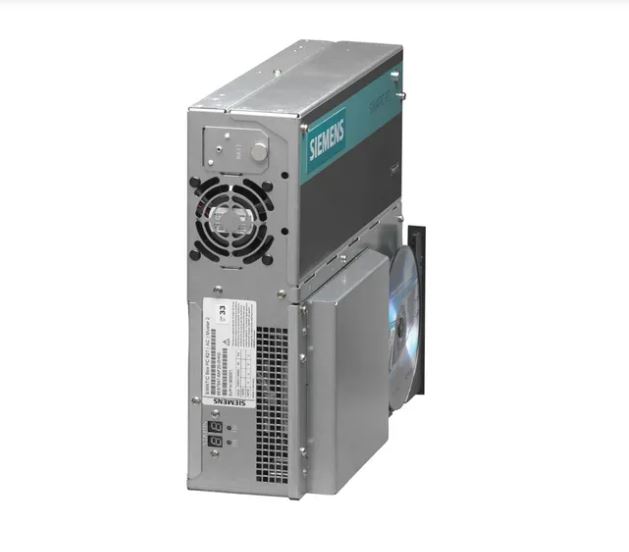

The Siemens part number 6ES7647-6CH06-0HA0 is a SIMATIC IPC627C (Box PC) with several advanced features. Here is a detailed description of the product, covering key sectors such as technical specifications, alarm/error codes, user manuals, troubleshooting, programming, and installation:
Technical Specifications
- Product Type: SIMATIC IPC627C (Box PC)
- Display Port: Available
- Ethernet Ports: 2x 10/100/1000 Mbit/s Ethernet RJ45
- USB Ports: 4 x USB V2.0 (high current)
- Serial Port: 1x serial (COM 1)
- RAID Controller: Onboard
- CompactFlash Drive: Available on the front
- Watchdog and Temperature/Fan Monitoring: Included
- Processor: Core I3-330E (2C/4T, 2.13 GHz, HT, VT, 3 MB cache)
- PROFIBUS: Supported
- Power Supply: 24 V DC industrial power supply
Alarm/Error Codes
- No specific information provided
User Manuals
- No specific information provided
Troubleshooting
- No specific information provided
Programming
- No specific information provided
Installation
- No specific information provided
Interference Immunity
- Interference immunity on supply cables: ±2 kV (according to IEC 61000-4-4, burst); ±1 kV (according to IEC 61000-4-5, surge pulse/line to line); ±2 kV (according to IEC 61000-4-5, surge pulse/line to ground)
- Interference immunity on signal cables: >30m ±2 kV acc. to IEC 61000-4-5, surge, length > 30 m; ±1 kV acc. to IEC 61000-4-4, Burst Interference immunity against voltage surge
- Interference immunity against asymmetric interference: ±2 kV acc. to IEC 61000-4-5, surge asymmetric
- Interference immunity against symmetric interference: ±1 kV acc. to IEC 61000-4-5, surge symmetric
Ambient Conditions
- Operating Temperature: 0 °C to 50 °C
- Storage/Transportation Temperature: -20 °C to 70 °C
- Altitude: Installation altitude above sea level, max. 2,000 m
- Relative Humidity: 5% to 85% at 30 °C, no condensation
- Vibrations: Vibration resistance during operation acc. to IEC 60068-2-6 tested according to IEC 60068-2-6: 10 cycles; 5 to 8.4 Hz: deflection 3.5 mm; 8.4 to 200 Hz: acceleration 9.8 m/s²
- Shock Testing: Shock load during operation Tested according to IEC 60068-2-27: 150 m/s², 11 ms
Operating Systems
- Pre-installed Operating System: SIMATIC Industrial OS
