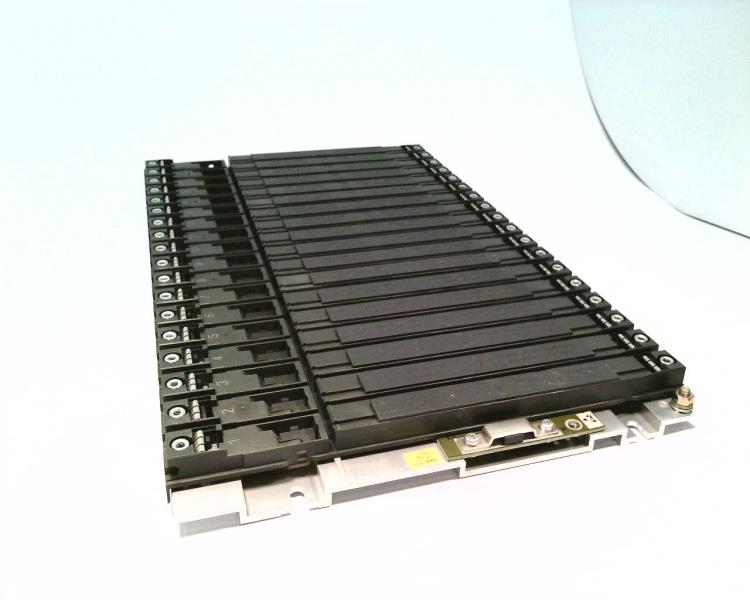

The Siemens part number 6ES7623-1AE01-4AA0 is a programmable logic controller (PLC) module designed for industrial automation applications. This module is part of the Siemens SIMATIC S7-200 series, which is known for its compact size, flexibility, and ease of use.
Technical Specifications:
- The 6ES7623-1AE01-4AA0 module is a CPU 200H with 16 KB of RAM and 32 KB of ROM.
- It has 24 digital inputs and 16 digital outputs.
- The module supports a maximum of 32 inputs and 32 outputs.
- The CPU operates at a clock speed of 20 MHz.
- The module is compatible with the SIMATIC S7-200 series software.
Alarm/Error Codes:
The module does not have a specific list of alarm or error codes documented for this part number. However, the SIMATIC S7-200 series generally uses a standardized error code system, which includes codes such as "F" for faults, "W" for warnings, and "I" for information messages.
User Manuals:
The official user manual for the 6ES7623-1AE01-4AA0 module is not publicly available. However, the SIMATIC S7-200 series user manuals can be accessed through the Siemens website or through authorized distributors.
Troubleshooting:
Troubleshooting for the 6ES7623-1AE01-4AA0 module typically involves checking the module's power supply, ensuring proper wiring and connections, and verifying the module's configuration. The SIMATIC S7-200 series troubleshooting guides are available through the Siemens website.
Programming:
The 6ES7623-1AE01-4AA0 module can be programmed using the SIMATIC S7-200 series software, which includes the SIMATIC STEP 7 programming software. This software allows users to create and edit programs using a visual programming interface.
Installation:
The installation process for the 6ES7623-1AE01-4AA0 module typically involves mounting the module in a suitable enclosure, connecting the power supply, and configuring the module's inputs and outputs. The SIMATIC S7-200 series installation guides are available through the Siemens website.
In summary, the Siemens part number 6ES7623-1AE01-4AA0 is a programmable logic controller module designed for industrial automation applications. It has 24 digital inputs and 16 digital outputs, operates at a clock speed of 20 MHz, and is compatible with the SIMATIC S7-200 series software. While detailed information on alarm/error codes, user manuals, troubleshooting, programming, and installation is not publicly available for this specific part number, general information on the SIMATIC S7-200 series can be accessed through the Siemens website or through authorized distributors.
