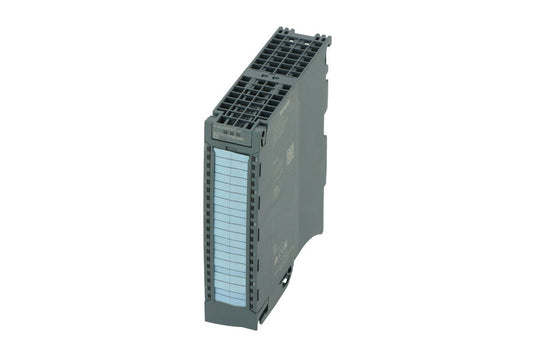

The Siemens part number 6ES7531-7PF00-0AB0 refers to an Analog Input Module AI 8xU/R/RTD/TC HF, which is a component of the SIMATIC S7-1500 automation system. This module is designed to provide analog input capabilities to the system, allowing it to read and process analog signals from various sensors and transducers.
Technical Specifications
- Resolution: The module offers 16-bit resolution, which is expandable to 21-bit resolution for RTD (Resistance Temperature Detector) and TC (Thermocouple) inputs.
- Accuracy: The module's accuracy is 0.1%.
- Input Types: The module supports various input types, including RTD, TC, and universal inputs (U).
Alarm/Error Codes
The documentation does not provide specific information on alarm or error codes for this module. It is recommended to consult the system manuals or contact Siemens support for detailed information on error handling and troubleshooting.
User Manuals
The user manual for this module is available in the form of a PDF document, which provides detailed information on the module's functionality, installation, and configuration.
Troubleshooting
Troubleshooting information for this module is not explicitly provided in the documentation. However, the user manual and system manuals should be consulted for general troubleshooting procedures and error handling strategies.
Programming
The module is integrated into the hardware catalog STEP 7 (TIA Portal) V13, Update 3 or higher, which supports programming and configuration of the module.
Installation
The module's installation instructions are not explicitly detailed in the documentation. However, general guidelines for installing SIMATIC S7-1500 modules are available in the system manuals and should be consulted for specific installation procedures.
In summary, the Siemens part number 6ES7531-7PF00-0AB0 refers to an Analog Input Module AI 8xU/R/RTD/TC HF, which is designed to provide analog input capabilities to the SIMATIC S7-1500 automation system. The module offers 16-bit resolution, expandable to 21-bit for certain input types, and has an accuracy of 0.1%. It supports various input types, including RTD, TC, and universal inputs. The module's programming and configuration are supported through the STEP 7 (TIA Portal) software, and troubleshooting information can be found in the user manual and system manuals.
