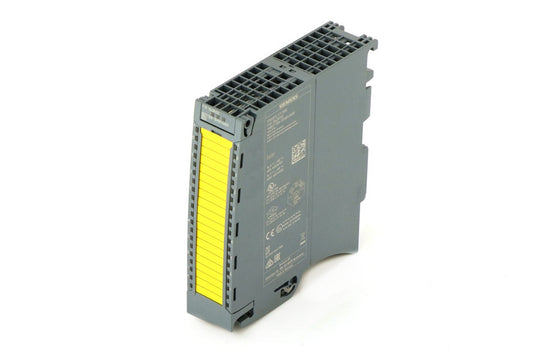

The Siemens part number 6ES7526-1BH00-0AB0 is a SIMATIC S7-1500 F-DI 16x24VDC digital input module. This module is designed for use in industrial automation systems and is part of the SIMATIC ET200MP series. It provides 16 digital inputs that can be powered by a 24VDC supply, with a maximum current consumption of 300mA. The module operates within a temperature range of 0 to 40°C when mounted vertically and 0 to 60°C when mounted horizontally. The module measures 147mm in length.
Technical Specifications:
- 16 digital inputs
- 24VDC power supply
- 300mA maximum current consumption
- Operating temperature range: 0 to 40°C (vertical), 0 to 60°C (horizontal)
- Length: 147mm
Alarm/Error Codes:
The documentation provided does not specify any alarm or error codes for this module. However, it is common for industrial automation modules to have specific error codes and alarm conditions that can be checked in the user manual or through the module's programming interface.
User Manuals:
The user manual for this module is available in English and can be downloaded from the Siemens Industry Mall website.
Troubleshooting:
Troubleshooting for this module would typically involve checking the power supply, input connections, and module configuration. The user manual provides detailed instructions for troubleshooting and error handling.
Programming:
The programming of this module is likely to be done using Siemens' SIMATIC software, which is designed for configuring and programming SIMATIC controllers and modules. The software provides a graphical interface for configuring inputs, outputs, and other module settings.
Installation:
The installation of this module typically involves mounting it in an industrial cabinet or enclosure, connecting it to a power supply and any necessary input or output lines, and configuring it using the SIMATIC software. The user manual provides detailed instructions for installation and configuration.
In summary, the Siemens part number 6ES7526-1BH00-0AB0 is a digital input module designed for use in industrial automation systems. It provides 16 digital inputs powered by a 24VDC supply and operates within a specific temperature range. The module can be configured and programmed using SIMATIC software, and troubleshooting and error handling are detailed in the user manual.
