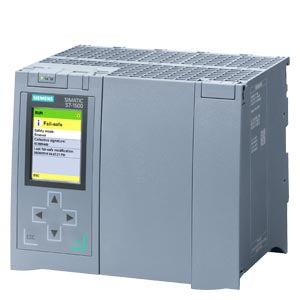

The Siemens part number 6ES7517-3UP00-0AB0 is a SIMATIC S7-1500TF CPU unit with a central processing unit (CPU) 1517TF-3 PN/DP. It features a work memory of 3 MB for program storage and 8 MB for data storage. The first interface is PROFINET IRT with two ports, making it suitable for industrial automation applications that require high-speed communication and data transfer.
Technical Specifications
- CPU: 1517TF-3 PN/DP
- Work Memory (Program): 3 MB
- Work Memory (Data): 8 MB
- First Interface: PROFINET IRT with 2 ports
Alarm/Error Codes
The documentation provided does not specify alarm or error codes for this product. For detailed information on error codes and troubleshooting, it is recommended to consult the user manual or contact the manufacturer's support team.
User Manuals
The user manual for this product can be accessed through the Siemens Industry Mall or other authorized sources. It provides detailed instructions on the installation, configuration, and operation of the CPU unit, as well as troubleshooting and error handling procedures.
Troubleshooting
Troubleshooting for this product involves checking the CPU's configuration, communication settings, and data transfer protocols. Common issues include incorrect configuration, faulty communication links, or software bugs. The user manual and manufacturer's support resources should be consulted for detailed troubleshooting procedures.
Programming
The programming of this CPU unit is typically done using Siemens' proprietary programming software, such as SIMATIC STEP 7. The software allows users to create and upload programs to the CPU, configure communication interfaces, and monitor system performance.
Installation
The installation of this CPU unit typically involves mounting it in a suitable enclosure, connecting it to power and communication cables, and configuring the system using the programming software. It is recommended to follow the manufacturer's installation guidelines and consult the user manual for specific details on installation procedures.
