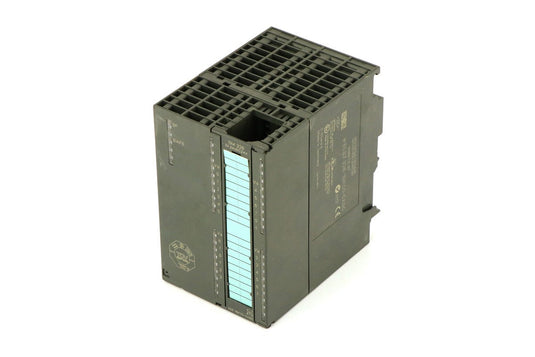

The Siemens part number 6ES7326-1BK00-0AB0 refers to a fail-safe signal module, specifically designed for use in the SIMATIC Automation System S7-300 ET 200M Distributed I/O Device. This module is part of the fail-safe signal modules family, which includes modules for digital inputs (DI) and outputs (DO), as well as analog inputs (AI).
Technical Specifications
- Module Type: Fail-safe signal module
- Module Number: 6ES7326-1BK00-0AB0
- Description: SM 326; DI 8 x NAMUR, SM 326 DO 10 x DC 24V/2A
- Module Family: Fail-safe signal modules
- System Compatibility: SIMATIC Automation System S7-300 ET 200M Distributed I/O Device
Alarm/Error Codes
No specific information on alarm or error codes is provided in the available documentation for this part number.
User Manuals
The user manual for this module is part of the "Fail-safe signal modules Installation and Operating Manual" document, which is available in multiple languages, including English, French, and Spanish. This manual provides detailed information on the installation, configuration, and operation of the fail-safe signal modules, including troubleshooting and error handling.
Troubleshooting
Troubleshooting information is included in the user manual, which covers common issues and their solutions. Additionally, the manual provides information on how to use the diagnostic functions of the module to identify and resolve problems.
Programming
The programming of the fail-safe signal modules is typically done using the SIMATIC STEP 7 software, which is part of the SIMATIC Automation System. The software provides a comprehensive set of tools for configuring and programming the modules, including the ability to set up safety functions and monitor the status of the modules.
Installation
The installation of the fail-safe signal modules is covered in the user manual, which includes detailed instructions on how to install the modules, connect them to the system, and configure them for use. The manual also provides information on how to ensure the modules are properly grounded and connected to power sources.
Additional Support
Siemens provides comprehensive support for its products, including online documentation, technical support, and training. The company's website offers a range of resources, including user manuals, technical data sheets, and FAQs. Additionally, Siemens offers on-site engineering, commissioning, and troubleshooting services through its H/F Competence Center.
