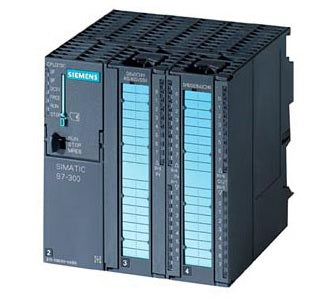

The Siemens part number 6ES7314-6CF01-0AB0 is a SIMATIC S7-300 CPU314C-2 DP Controller, which is a type of programmable logic controller (PLC) used in industrial automation. This PLC is designed for use in a variety of applications, including process control, manufacturing, and building automation.
Technical Specifications
The CPU 314C-2 DP is a part of the SIMATIC S7-300 series, which is known for its high performance and reliability. The CPU itself has a memory capacity of 48KB and supports both MPI (Multi-Point Interface) and DP (Digital Protocol) communication protocols. It also supports PROFINET functionalities, making it suitable for use in modern industrial networks.
Alarm/Error Codes
The documentation provided does not specifically mention alarm or error codes for this particular part number. However, it is common for PLCs to have specific error codes and alarm conditions that can be checked and addressed through the PLC's programming and configuration. For detailed information on error codes and troubleshooting, it is recommended to consult the user manual or contact Siemens support directly.
User Manuals
The user manual for the CPU 314C-2 DP is available online, and it provides detailed information on the PLC's technical specifications, installation, and programming. The manual is part of the documentation package with the order number 6ES7398-8FA10.
Troubleshooting
Troubleshooting for this PLC is typically done through the PLC's programming software, which allows users to monitor and analyze the PLC's performance and diagnose any issues. The manual provides guidance on troubleshooting and error handling, and Siemens support is available for further assistance.
Programming
The CPU 314C-2 DP is programmed using Siemens' SIMATIC STEP 7 software, which is a widely used programming tool for the S7 series of PLCs. The software allows users to create and edit programs for the PLC, as well as monitor and debug the PLC's performance.
Installation
The installation of the CPU 314C-2 DP typically involves connecting the PLC to a power source, configuring the communication protocols, and setting up the PLC's programming. The manual provides detailed instructions for the installation process, and Siemens support is available for assistance.
Replacement and Upgrades
The replacement of this PLC with a newer model or a direct successor is possible without changing the hardware configuration, but it requires careful planning and consideration of the compatibility of the new CPU with the existing system. The manual and Siemens support should be consulted for guidance on replacement and upgrade procedures.
