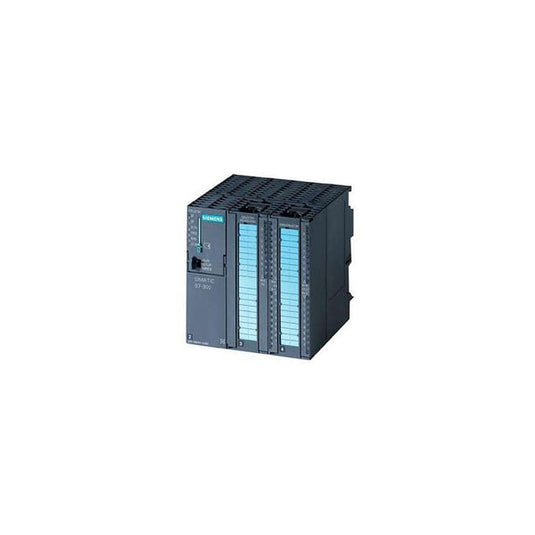

The Siemens part number 6ES7314-5AE02-0AB0 is a CPU module for the S7-300 automation system. It is a CPU 314C-2 DP model, which is a part of the SIMATIC S7-300 family of programmable logic controllers (PLCs). This CPU is designed for use in industrial automation applications, particularly in the manufacturing and process control sectors.
Technical Specifications
The CPU 314C-2 DP is a high-performance controller with a processing speed of 24 MHz and a memory capacity of 64 KB of RAM and 128 KB of ROM. It supports the SIMATIC STEP 7 programming software and has a range of interfaces including RS-232, RS-485, and PROFIBUS DP.
Alarm/Error Codes
The CPU 314C-2 DP has a range of alarm and error codes that can be used to diagnose and troubleshoot issues with the system. These codes are typically displayed on the CPU's display screen or can be accessed through the STEP 7 software. The specific codes and their meanings are detailed in the user manual and technical documentation provided with the product.
User Manuals
The user manual for the CPU 314C-2 DP is available in multiple languages and can be accessed through the Siemens website or through the STEP 7 software. The manual provides detailed information on the CPU's operation, configuration, and troubleshooting procedures.
Troubleshooting
Troubleshooting the CPU 314C-2 DP typically involves checking the system's configuration and settings, as well as monitoring the CPU's status and error messages. The user manual and technical documentation provide detailed guidance on troubleshooting procedures and common issues that may arise.
Programming
The CPU 314C-2 DP is programmed using the SIMATIC STEP 7 software, which is a comprehensive programming environment for the S7-300 series. The software provides a range of tools and functions for designing, testing, and debugging programs, as well as for monitoring and controlling the system.
Installation
The CPU 314C-2 DP is designed to be installed in a controlled environment, such as an industrial automation system. The installation process typically involves mounting the CPU in a suitable enclosure, connecting it to the system's power supply and communication networks, and configuring the system's settings and parameters. The user manual and technical documentation provide detailed guidance on the installation process.
Additional Information
The CPU 314C-2 DP is designed to meet various international standards for safety and performance, including Factory Mutual Research: Approval Standard Class Number 3611. It is also designed to be recyclable, with low levels of harmful substances in its composition.
Download the Data Sheet Go to product
