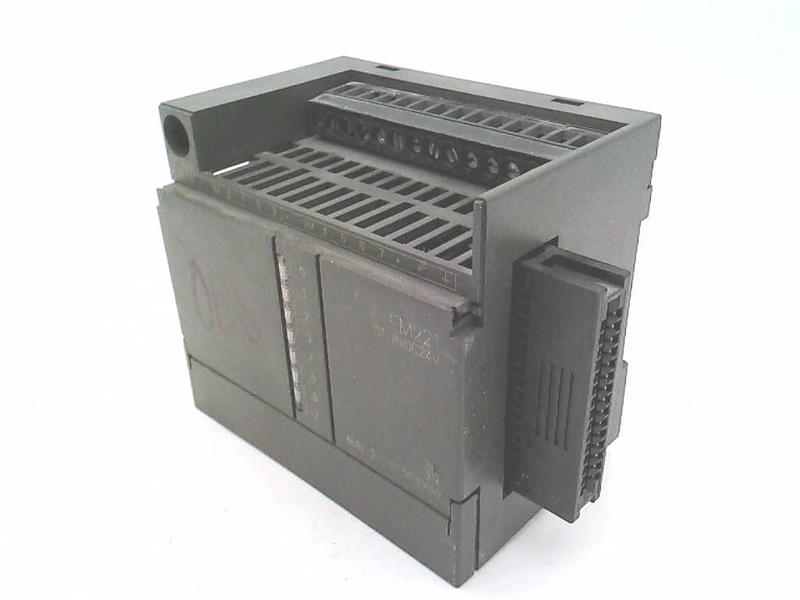

The Siemens part number 6ES7214-1BC00-0XB0 is a programmable logic controller (PLC) from the S7-200 series. This PLC is designed for use in industrial automation and control systems, particularly in applications where compactness and ease of use are crucial.
Technical Specifications
- CPU: The CPU is the central processing unit of the PLC, responsible for executing the program and controlling the system. The 6ES7214-1BC00-0XB0 has a CPU 200 with a clock speed of 24 MHz.
- Memory: The PLC has a total of 2 KB of RAM and 32 KB of ROM. This memory is used to store the program and data used by the PLC.
- Communication: The PLC supports various communication protocols, including PROFIBUS, PROFINET, and RS-232.
- Power Supply: The PLC requires a DC power supply of 24 V, with a maximum current consumption of 1.5 A.
Alarm/Error Codes
- Alarm Codes: The PLC uses a combination of LED indicators and a display screen to indicate alarms. The alarm codes are based on the IEC 1131 standard and are used to identify specific errors or conditions in the system.
- Error Codes: The PLC also uses error codes to indicate specific errors or malfunctions. These codes are used to diagnose and troubleshoot issues in the system.
User Manuals
- Operating Manual: The operating manual for the 6ES7214-1BC00-0XB0 provides detailed information on the PLC's operation, programming, and troubleshooting. It includes diagrams, flowcharts, and examples to help users understand the PLC's capabilities and limitations.
- Programming Manual: The programming manual provides detailed information on programming the PLC using the Siemens STEP 7 software. It covers topics such as data types, programming structures, and communication protocols.
Troubleshooting
- Troubleshooting Guide: The troubleshooting guide for the 6ES7214-1BC00-0XB0 provides step-by-step procedures for diagnosing and resolving common issues with the PLC. It includes troubleshooting tables and flowcharts to help users identify and fix problems quickly.
- Error Messages: The PLC displays error messages on its display screen when an error occurs. These messages provide information about the nature of the error and can be used to troubleshoot the issue.
Programming
- Programming Software: The 6ES7214-1BC00-0XB0 can be programmed using the Siemens STEP 7 software. This software provides a graphical interface for creating and editing programs, as well as debugging and testing tools.
- Programming Languages: The PLC supports several programming languages, including Ladder Logic, Function Block, and Structured Text.
Installation
- Mounting: The PLC can be mounted in a standard 35 mm DIN rail, making it easy to integrate into existing systems.
- Cable Connection: The PLC has various cable connections for communication, power supply, and programming. These connections are designed to be easy to use and ensure reliable communication.
- Safety Precautions: The PLC should be installed in a well-ventilated area, away from sources of heat and moisture. It should also be installed in compliance with local electrical safety regulations.
