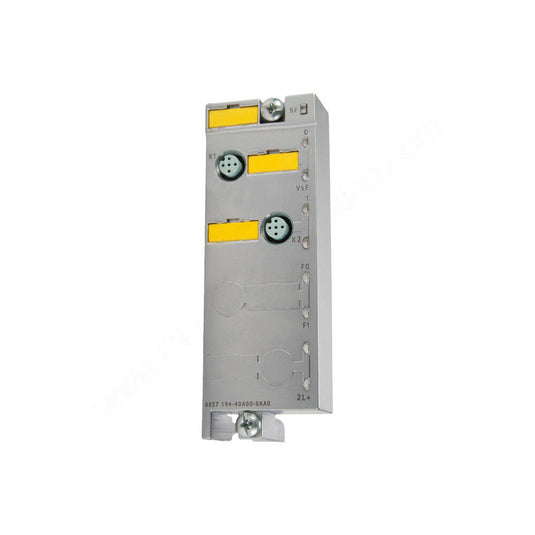

Siemens 6ES7194-4DA00-0AA0

Siemens 6ES7194-4DA00-0AA0

SKU: 6ES7194-4DA00-0AA0-R-EU

Next Day Delivery Available for U.S. Stock

All Parts Come with 12 Month Warranty

New, Surplus, and Refurbished Available

Select the condition:
Choose Stock Location / Vendor: We ship items from multiple suppliers and locations worldwide, so prices and inventory may vary. Please select the Stock Location / Vendor that best fits your current needs.
Warranty Information

All products (new, surplus, and refurbished) are covered by Chief Automation's 1 Year Warranty. The Manufacturer's Warranty does NOT apply.

Shipping Information

We offer free standard shipping. Products located in the U.S. are eligible for expedited shipping, including next day air.

Payment Methods

We only accept online payments such as Visa, Mastercard, American Express, Discover, etc. All payments are fully secured.

Condition SKU Stock Location and Best Delivery Date Price Purchase
Refurbished 6ES7194-4DA00-0AA0-R-EU 28 Europe $74.00

The Siemens part number 6ES7194-4DA00-0AA0 is a SIMATIC DP connecting module designed for the ET200PRO, a fieldbus mounting frame with one slot. This module is used for fail-safe fieldbus mounting and is a critical component in industrial automation systems.

Technical Specifications:

  • The module is designed for use with the ET200PRO fieldbus mounting frame, which supports the SIMATIC DP protocol.
  • It features a pre-assembled control cable with an M12 plug angled at one end, having 5 poles and a 1.5-meter cable with 5 x 0.34 mm2 A-encoded conductors, rated for a maximum of 4 A and insulated with a black PUR sheath.

Alarm/Error Codes:

The module does not have specific alarm or error codes listed in the available documentation. It is likely that any issues with the module would be addressed through troubleshooting and error messages from the ET200PRO frame or the SIMATIC DP protocol.

User Manuals:

The user manual for the 6ES7194-4DA00-0AA0 connecting module is not readily available online. It is recommended to contact Siemens directly or consult the ET200PRO frame manual for detailed instructions on the module's installation and operation.

Troubleshooting:

Troubleshooting the 6ES7194-4DA00-0AA0 connecting module would typically involve checking the module's connections to the ET200PRO frame and the SIMATIC DP protocol. This includes verifying the integrity of the control cable and ensuring that the module is properly seated and secured in the frame.

Programming:

The programming of the 6ES7194-4DA00-0AA0 connecting module is likely to be done through the SIMATIC DP protocol, which is a proprietary protocol used for communication in industrial automation systems. Programming details are not publicly available and would require access to Siemens documentation or consulting with a Siemens expert.

Installation:

The installation of the 6ES7194-4DA00-0AA0 connecting module involves mounting it in the ET200PRO fieldbus mounting frame, ensuring proper connections to the control cable, and configuring the SIMATIC DP protocol for communication. It is recommended to follow the ET200PRO frame manual and Siemens documentation for detailed installation instructions.

Download the Data Sheet Go to product
