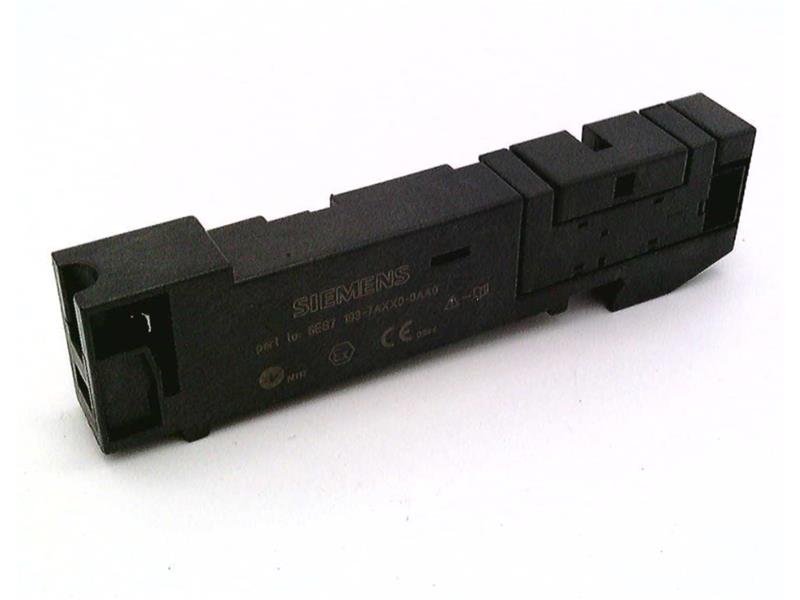

Siemens 6ES7193-0CD40-7XA0

The Siemens part number 6ES7193-0CD40-7XA0

The Siemens part number 6ES7193-0CD40-7XA0 is a spare part for a SIMATIC DP terminal block (ET 200B) designed for analog electronic modules with 4-wire spring-loaded terminals. It has a width of 160 mm, a height of 130 mm, and a depth of 59 mm, weighing approximately 600 grams. The terminal block operates within an ambient temperature range of 0°C to 60°C and is designed for use with a supply voltage of 24 V DC, with a permissible range of 18.5 V to 30 V DC.

Technical Specifications

• Supply voltage: 24 V DC, with a permissible range of 18.5 V to 30 V DC
• Input current: 70 mA (typical) and 100 mA (maximum)
• Potential separation between electronic block and PROFIBUS DP: Yes
• Ambient conditions: Operating temperature range of 0°C to 60°C
• Connection method: Spring terminals
• Dimensions: 160 mm (width), 130 mm (height), and 59 mm (depth)
• Weight: Approximately 600 grams.

Alarm/Error Codes

No specific alarm or error codes are mentioned in the provided data sheets for this part number. It is likely that these codes would be specific to the system or module that this terminal block is used in, and would require consultation of the system's documentation or technical support.

User Manuals

No user manuals are directly linked to this part number in the provided search results. However, user manuals for SIMATIC DP systems and modules are likely available from Siemens or other authorized sources. These manuals would provide detailed information on the installation, operation, and troubleshooting of the system.

Troubleshooting

Troubleshooting for this terminal block would likely involve checking the supply voltage, input current, and ambient conditions to ensure they are within the specified ranges. If issues persist, it may be necessary to consult the system's documentation or technical support for further guidance.

Programming

This terminal block does not appear to be programmable. It is designed as a simple terminal block for connecting analog electronic modules to a SIMATIC DP system.

Installation

The installation of this terminal block would typically involve connecting it to the SIMATIC DP system and ensuring that the supply voltage and ambient conditions are within the specified ranges. The block's spring-loaded terminals would facilitate easy connection and disconnection of the analog electronic modules.
