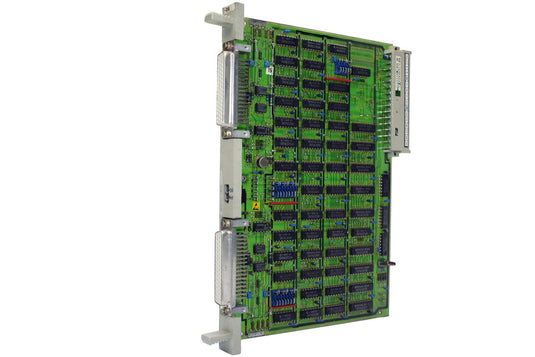

The Siemens part number 6ES5000-1AA31 is a programmable logic controller (PLC) module designed for industrial automation applications. This module is part of the Siemens SIMATIC S7-200 series, which is a widely used and reliable range of PLCs known for their ease of use and flexibility.
Technical Specifications
The 6ES5000-1AA31 module is a compact, single-board PLC with a 16-bit microprocessor. It has a memory capacity of 16 KB for user programs and 2 KB for data memory. The module supports a maximum of 128 inputs and 128 outputs, making it suitable for applications with a moderate number of inputs and outputs. It operates at a clock frequency of 4 MHz and has a maximum processing speed of 20 μs per instruction.
Alarm/Error Codes
The 6ES5000-1AA31 module has a built-in alarm and error handling system. If an error occurs, the module can generate an alarm signal, which can be used to trigger actions such as stopping the process or sending an alert to a control room. The module also has a diagnostic system that can detect and report errors, making it easier to troubleshoot and maintain the system.
User Manuals
The user manual for the 6ES5000-1AA31 module is available in various languages and can be downloaded from the Siemens website. The manual provides detailed information on the module's technical specifications, installation, and programming procedures. It also includes troubleshooting guides and error code descriptions.
Troubleshooting
Troubleshooting the 6ES5000-1AA31 module typically involves identifying and resolving issues related to programming, communication, or hardware problems. Common troubleshooting steps include checking the module's power supply, verifying the programming, and ensuring proper communication with other devices in the system. The user manual provides detailed troubleshooting procedures and error code descriptions to help resolve issues.
Programming
The 6ES5000-1AA31 module can be programmed using Siemens' SIMATIC STEP 7 software. The software provides a graphical programming environment that allows users to create and edit programs using a ladder logic or function block diagram. The module also supports remote programming, which allows users to program the module from a remote location.
Installation
The 6ES5000-1AA31 module is designed to be installed in a control cabinet or enclosure. It requires a power supply of 24 V DC and can operate in temperatures ranging from -20°C to 60°C. The module should be installed according to the manufacturer's instructions and should be properly secured to prevent damage or vibration.
