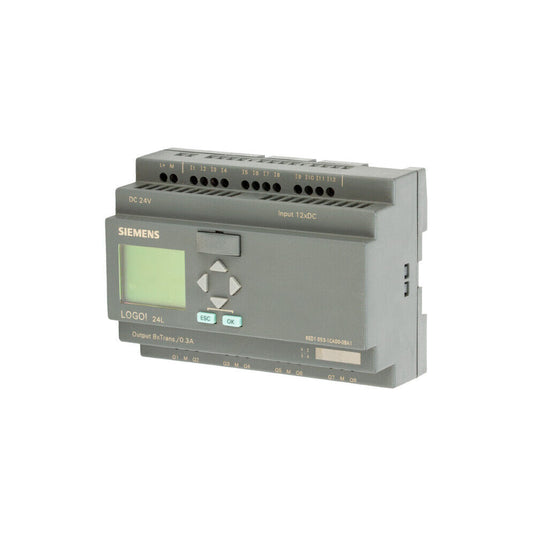

The Siemens 6ED1053-1CA00-0BA1 is a LOGO 24L Logic Module, a type of programmable logic controller (PLC) designed for use in industrial automation applications. It is a compact, DIN rail-mountable device with a display and a range of input/output (I/O) capabilities.
Technical Specifications
- Display: The module features a display with background lighting and 4 x 12 characters, allowing for clear and easy monitoring of the system's status.
- Memory: The device has a total of 56 blocks available for creating the circuit program, providing ample space for complex control logic.
- I/O: The module supports 12 inputs and 8 outputs, with a voltage range of 24V for all I/O interfaces.
- Mounting: The device is designed for mounting on a DIN rail, making it easy to integrate into existing control systems.
Alarm/Error Codes
The Siemens 6ED1053-1CA00-0BA1 does not have specific alarm or error codes listed in the provided documentation. However, it is likely that the device will have standard error codes and alarm messages that are specific to the LOGO series and can be found in the user manual or technical documentation for the product.
User Manual
The user manual for the Siemens 6ED1053-1CA00-0BA1 is available in PDF format from the Siemens Industry Online Support website. The manual provides detailed information on the device's installation, wiring, and usage, as well as troubleshooting and maintenance procedures.
Troubleshooting
Troubleshooting for the Siemens 6ED1053-1CA00-0BA1 would typically involve checking the device's power supply, ensuring proper wiring and connections, and verifying the program logic. The user manual provides detailed troubleshooting procedures and guidelines for resolving common issues.
Programming
The Siemens 6ED1053-1CA00-0BA1 is programmed using the LOGO programming software, which is designed to be user-friendly and intuitive. The software allows users to create and edit programs using a visual programming interface, making it accessible to users without extensive programming experience.
Installation
The installation of the Siemens 6ED1053-1CA00-0BA1 involves mounting the device on a DIN rail, connecting the power supply, and wiring the inputs and outputs according to the specific application requirements. The user manual provides detailed instructions for the installation process.
Additional Information
The Siemens 6ED1053-1CA00-0BA1 is available from various suppliers and distributors, including Siemens, Omron, Phoenix Contact, and others. It is also available for purchase online from retailers like and PLSwiss. The device is manufactured in Germany and is available with a 2-year warranty on surplus parts and repairs.
Download the Data Sheet Go to product
