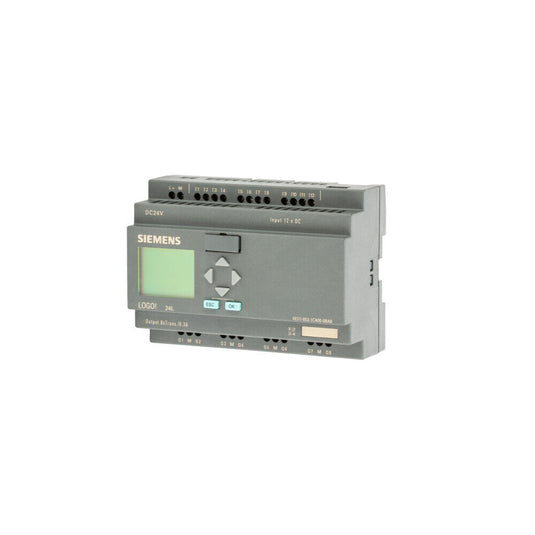

The Siemens part number 6ED1053-1CA00-0BA0 is associated with the LOGO system, a universal logic module from Siemens. The LOGO system is designed to be highly functional and easy to operate, making it suitable for a wide range of applications. It integrates control, command, and visualization capabilities with a power supply, expansion interface, and analog and digital input/output capabilities.
Technical Specifications
The LOGO system offers various technical specifications depending on the specific module configuration. For instance, the LOGO 12/24RC module operates at 12/24 V DC, has 8 digital inputs, and 4 relays with a current rating of 10 A. The LOGO 24 module operates at 24 V DC, has 8 digital inputs, and 4 transistors with a current rating of 24 V / 0.3 A. The LOGO 230RC module operates at 115...240 V AC/DC, has 8 digital inputs, and 4 relays with a current rating of 10 A.
Alarm/Error Codes
The documentation does not provide specific information on alarm or error codes for the LOGO system. However, it does mention that the system is designed to provide error messages and warnings through its display and alarm functions, which can be configured according to the specific application requirements.
User Manuals
The user manuals for the LOGO system are available in various languages and formats, including PDF and online documentation. The manuals provide detailed information on the system's operation, configuration, and troubleshooting, as well as technical specifications and safety guidelines.
Troubleshooting
Troubleshooting the LOGO system involves identifying and addressing issues related to power supply, communication, and logic module operation. The user manuals and online resources provide guidance on troubleshooting procedures and common issues that may arise during system operation.
Programming
The LOGO system can be programmed using Siemens' LOGOSoft software, which allows users to create circuit programs and configure the system's logic and input/output functions. The software is designed to be user-friendly and provides a range of tools and features for programming and debugging the system.
Installation
The installation of the LOGO system typically involves mounting the logic module and connecting it to the power supply, expansion modules, and other components according to the specific application requirements. The user manuals and online resources provide detailed instructions on the installation process and any specific considerations for the chosen configuration.
