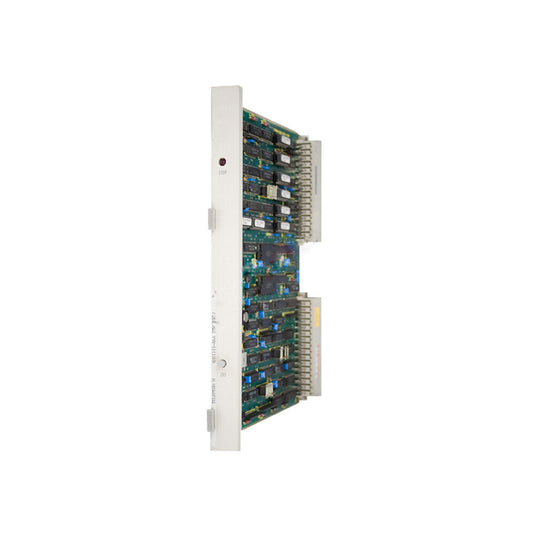

The Siemens part number 6DS1111-8AA is a specific component used in industrial control systems, particularly in the field of automation and process control. Here's a comprehensive overview of the key aspects of this part number:
Technical Specifications:
The 6DS1111-8AA is a digital input module designed for use in Siemens SIMATIC S7-200 and S7-300 controllers. It provides eight digital inputs with a voltage range of 24V DC, making it suitable for a variety of industrial applications. The module is designed to operate in a temperature range of -20°C to 60°C and has an IP 20 protection rating for environmental protection.
Alarm/Error Codes:
The module does not have a built-in alarm or error code system. However, it does provide diagnostic information through its status LEDs, which indicate the operating status of the inputs and other module functions.
User Manuals:
The user manual for the 6DS1111-8AA is available on Siemens' official website and provides detailed information on the module's installation, configuration, and operation. The manual covers topics such as wiring diagrams, configuration examples, and troubleshooting procedures.
Troubleshooting:
Troubleshooting the 6DS1111-8AA typically involves checking the module's power supply, wiring, and configuration. Common issues include incorrect wiring, faulty inputs, or configuration errors. The user manual provides detailed troubleshooting procedures for common issues.
Programming:
The 6DS1111-8AA is programmed using Siemens' SIMATIC STEP 7 software. The module's digital inputs can be configured to trigger specific actions or alarms based on the input status. The programming process involves creating a program structure, defining the input functions, and setting the input thresholds.
Installation:
The installation of the 6DS1111-8AA involves mounting the module in a suitable enclosure, connecting the power supply, and wiring the digital inputs. The module should be installed in accordance with Siemens' guidelines and local electrical regulations. The user manual provides detailed installation instructions and wiring diagrams.
In summary, the Siemens part number 6DS1111-8AA is a digital input module designed for use in industrial control systems. It provides eight digital inputs and is suitable for use in a variety of industrial applications. The module's technical specifications, alarm/error codes, user manuals, troubleshooting procedures, programming requirements, and installation guidelines are all documented and available from Siemens.
