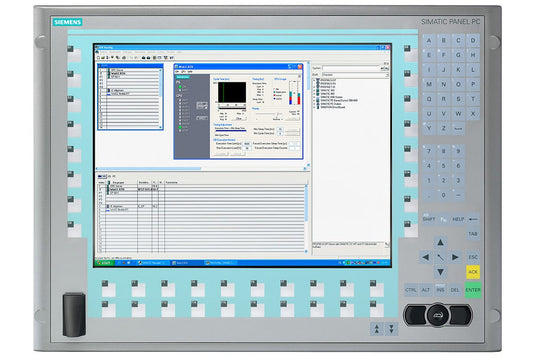

The Siemens part number 6AV7893-0BH34-0BC1 is a SIMATIC HMI IPC677C (Panel PC) designed for industrial applications. It features a 15-inch display with a resolution of 1024x768 and supports USB V2.0, serial (COM1), and Ethernet connectivity. The device includes a RAID controller, watchdog, temperature, and fan monitoring capabilities. It runs on Windows XP Professional SP3 MUI (Multilingual User Interface) and is compatible with PROFIBUS/MPI (CP 5611-A2-compatible).
Technical Specifications
- Display: 15 inches, 1024x768 resolution
-
Connectivity:
- Ethernet: 2x10/100/1000 Mbit/s
- USB: 4x USB V2.0
- Serial: 1x serial (COM1)
-
Other Features:
- RAID controller
- Watchdog
- Temperature and fan monitoring
- Power supply: 110/230 V AC
- Power supply cable: EUROPE core
- Processor: Intel Core i7-610E (2C/4T, 2.53 GHz, Turbo Boost, Hyper-Threading, Virtualization, 4 MB cache)
- RAM: 4 GB DDR3 1066 DIMM
- Storage: 250 GB SATA DVD+-R+-RW
- Expansion slots: 1x PCI, 1x PCIe (X16)
Alarm/Error Codes
The provided information does not include specific alarm or error codes for this Siemens part number. For detailed information on error codes or troubleshooting, please refer to the user manual or contact Siemens technical support.
User Manual
The user manual for the 6AV7893-0BH34-0BC1 is available for download from the Siemens Industry Mall website. The manual provides detailed instructions on operating and troubleshooting the device.
Troubleshooting
Troubleshooting procedures for the 6AV7893-0BH34-0BC1 are outlined in the user manual. These procedures cover common issues such as display problems, connectivity issues, and hardware malfunctions.
Programming
Programming details for the 6AV7893-0BH34-0BC1 are not provided in the available information. For detailed information on programming the device, please consult the user manual or contact Siemens technical support.
Installation
The installation process for the 6AV7893-0BH34-0BC1 is detailed in the user manual. It includes steps for mounting the device, connecting cables, and powering it on. Additionally, the manual provides guidelines for configuring the device for specific industrial applications.
