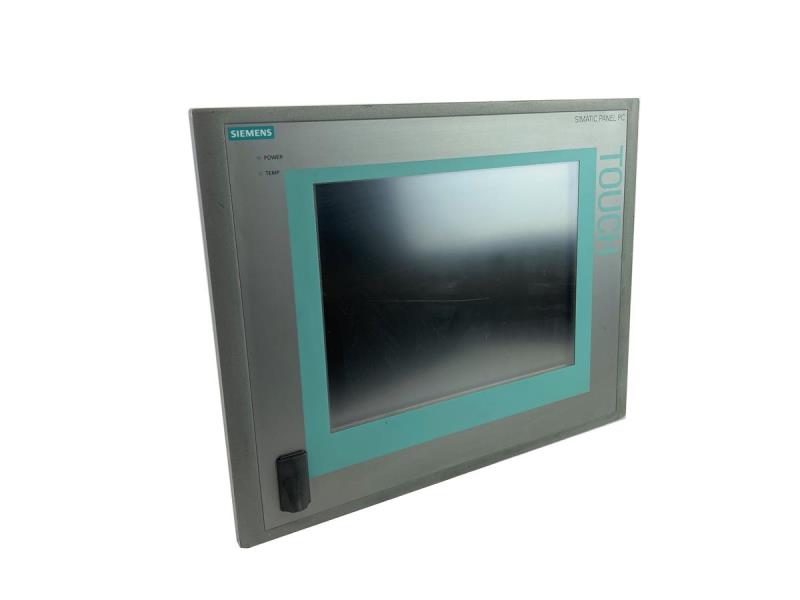

The Siemens part number 6AV7892-1BA10-1AC0 is a SIMATIC HMI IPC677C (Panel PC) with a range of features and specifications. This product is designed for industrial control systems and includes a 15-inch touch display with a resolution of 1024x768 pixels. It supports multiple network interfaces, such as two 10/100/1000 Mbit/s Ethernet ports and one serial port (COM1), and has four USB ports (V2.0) for connecting peripherals. Additionally, the device includes a watchdog, temperature, and fan monitoring system for ensuring reliable operation and a RAID controller for data storage. It is powered by a 110/230 V AC power supply unit with a NAMUR interface and a power supply cable.
Technical Specifications
- Display: 15-inch touch display with a resolution of 1024x768 pixels
- Network Interfaces: 2x 10/100/1000 Mbit/s Ethernet ports, 1x serial port (COM1)
- USB Ports: 4x USB V2.0 ports
- Data Storage: RAID controller onboard
- Power Supply: 110/230 V AC power supply unit with NAMUR interface and a power supply cable
- CPU: Core i7-610E (2C/4T, 2.53GHz, TB, HT, VT, 4 MB cache)
- RAM: 2 GB DDR3 1066 DIMM
- Storage: 250 GB HDD SATA DVD+-R+-RW
- Operating System: Windows 7 Ultimate 32 bit SP1, MUI (de, en, fr, es, it)
- Expansion: No expansion (software)
Alarm/Error Codes
No specific information on alarm or error codes for this product is available in the provided search results.
User Manuals
No user manuals for this specific product are available in the provided search results. However, user manuals for similar products from Siemens can be accessed through the Industry Mall website.
Troubleshooting
Troubleshooting information for this product is not available in the provided search results. However, Siemens provides general troubleshooting guidelines for its products on its website.
Programming
No specific information on programming for this product is available in the provided search results. However, Siemens provides programming guides for its products on its website.
Installation
No specific installation instructions for this product are available in the provided search results. However, Siemens provides general installation guidelines for its products on its website.
In summary, the Siemens part number 6AV7892-1BA10-1AC0 is a SIMATIC HMI IPC677C (Panel PC) designed for industrial control systems. It features a 15-inch touch display, multiple network interfaces, and a RAID controller for data storage. While detailed technical specifications and troubleshooting information are available, specific user manuals, programming guides, and installation instructions are not accessible through the provided search results.
