Description and Technical Specifications

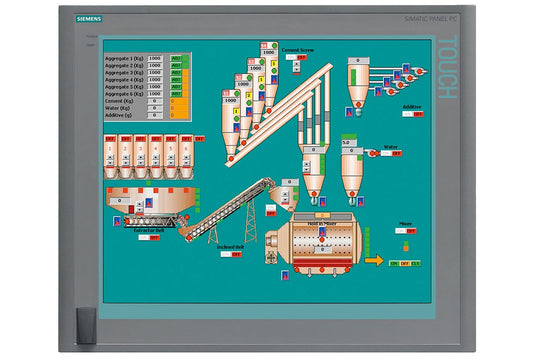

The Siemens part number 6AV7875-1BA20-0AC0 is a SIMATIC Panel PC 677B, a compact and powerful industrial computer designed for industrial automation applications. It features a 19" touchscreen display with a resolution of 1280 x 1024 pixels, making it suitable for a variety of industrial settings. The panel PC supports Ethernet connectivity with speeds of up to 1000 Mbit/s, as well as four USB V2.0 ports and one serial port (COM1). Additionally, it includes a front-side USB interface for easy access and a DC 24V power supply. The device is powered by a Celeron M440 processor running at 1.86 GHz, accompanied by 1 MB of SLC flash memory and 2 MB of PCI slots. It also features 1 GB of DDR2 RAM and a 160 GB SATA hard drive. The operating system is Windows XP Professional Multilingual (de,en,fr,es,it,ja,zh,ko).
Alarm/Error Codes
The documentation provided does not include specific information on alarm or error codes for this Siemens part number. However, it is typical for industrial automation devices like the SIMATIC Panel PC 677B to have specific error codes or alarm messages that can be accessed through the device's interface or through a monitoring system. These codes usually provide detailed information about the nature of the issue and can be used by technicians to troubleshoot and resolve problems.
User Manuals
The user manual for the Siemens SIMATIC Panel PC 677B is not readily available online. However, it is likely that the manual is provided by Siemens or other authorized distributors as part of the product package or upon request. The manual would typically cover installation, operation, and maintenance procedures, as well as troubleshooting and error handling.
Troubleshooting
Troubleshooting for the SIMATIC Panel PC 677B would involve identifying and addressing any issues that arise during its operation. This could include checking the power supply, network connections, and other hardware components. The user manual would likely provide detailed procedures for troubleshooting and resolving common issues. Additionally, Siemens or authorized service providers may offer technical support and repair services for the device.
Programming
The programming requirements and capabilities of the SIMATIC Panel PC 677B depend on the specific application and the software used. The device supports Windows XP Professional, which provides a range of programming tools and interfaces for various industrial automation applications. The specific programming requirements would depend on the user's needs and the software they are using.
Installation
The installation of the SIMATIC Panel PC 677B typically involves mounting the device in a suitable location, connecting it to the power supply and network, and configuring the device according to the specific application requirements. The user manual would provide detailed instructions for installation and setup. Additionally, Siemens or authorized service providers may offer installation services for the device.
