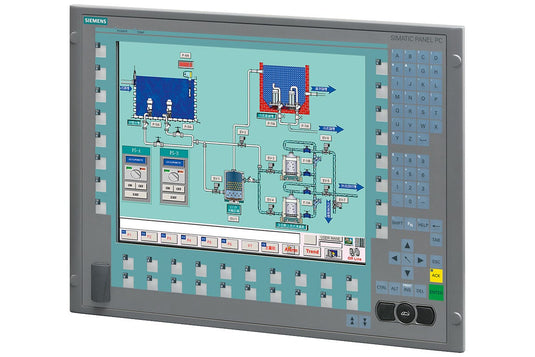

The Siemens part number 6AV7873-0AA20-1AC0 refers to a SIMATIC PANEL PC 677B, which is a type of industrial electronic equipment from the SIMATIC PANEL PC range. This device is equipped with several features that make it suitable for industrial applications. Here is a breakdown of its key specifications and capabilities:
Technical Specifications
- Network Interface: Ethernet with speeds of 10/100/1000 Mbit/s
- Ports: 4 USB 2.0 ports and 1 serial port (COM1)
- Display: 15" key display with a resolution of 1024x768
- Power Supply: 24 V DC
- Processor: Celeron M440/1.86 GHz
- Memory: 1 MB SLC and 2xPCI with 1 GB DDR2 RAM
- Storage: 160 GB SATA HDD and a 3.5" DVD+-R+-RW drive
- Operating System: Windows XP Professional MUI (available in six languages: German, English, French, Spanish, Italian, Japanese, Chinese, and Korean) only with a hard disk
- Additional Features: PROFIBUS/MP support with a 2 MB buffer SRAM
Alarm/Error Codes
The documentation provided does not specify any alarm or error codes for this device. For detailed information on error codes and troubleshooting, it is recommended to consult the user manual or contact the manufacturer.
User Manual
The user manual for this device can be downloaded from the Siemens Industry Mall website. It provides detailed information on the device's operation, configuration, and troubleshooting procedures.
Troubleshooting
Troubleshooting for this device should be done in accordance with the procedures outlined in the user manual. If issues persist, it may be necessary to contact the manufacturer or a qualified service technician.
Programming
The device is designed to be used in industrial settings and does not require programming in the classical sense. However, it does support PROFIBUS/MP, which is a communication protocol commonly used in industrial automation. Any programming or configuration for this protocol would need to be done according to the specifications provided by Siemens.
Installation
Installation of this device should be done according to the guidelines provided in the user manual. It is recommended to follow the manufacturer's instructions for ensuring proper installation and configuration to avoid any potential issues or damage to the device.
