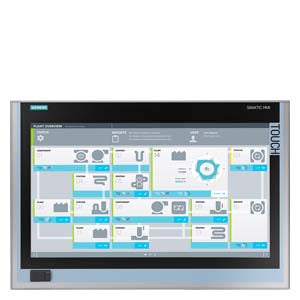

The Siemens part number 6AV7260-0GM30-0BX6 refers to a SIMATIC IPC677D (Panel PC) that features two 10/100/1000 Mbit/s Ethernet ports and four USB V3.0 ports. It also includes one serial (COM1) port and has a watchdog, temperature, and fan monitoring system. Additionally, the device has a RAID controller onboard.
Technical Specifications
- Ethernet: 2x10/100/1000 Mbit/s
- USB: 4x USB V3.0
- Serial: 1x serial (COM1)
- Monitoring: Watchdog, temperature, and fan monitoring
- RAID: RAID controller onboard
Alarm/Error Codes
No specific information on alarm or error codes was found for this part number.
User Manuals
The user manuals for this product can be accessed through the Siemens Industry Mall or Industry Online Support, which are now integrated into the SiePortal platform. Registered users can log in to view user-specific settings and prices, as well as access other functions.
Troubleshooting
Troubleshooting information for this product can be accessed through the SiePortal platform, which combines the functionalities of Industry Mall and Industry Online Support. Registered users can log in to access troubleshooting resources.
Programming
No specific information on programming for this part number was found.
Installation
Installation details for this product can be accessed through the SiePortal platform, which provides user-specific settings and prices. Registered users can log in to view installation instructions and other relevant information.
