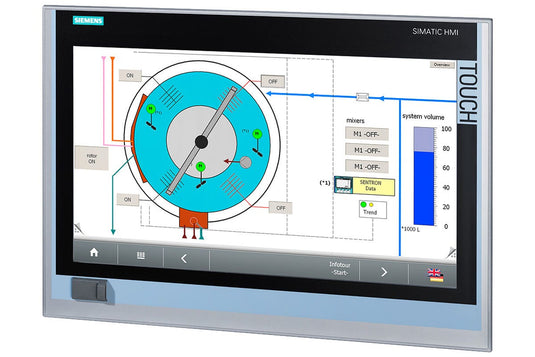

The Siemens part number 6AV7240-3DC04-0HD0 is a SIMATIC IPC 477D computing unit with a 19" touch display. It features four USB ports (two at the back and one at the front), Ethernet connectivity with speeds of 10/100/1000, and a Core I3-3217UE processor. The device has 4 GB of memory and includes two Gbit Ethernet ports for industrial Ethernet (IE) and professional network (PN) connections. Additionally, it has one RS-232 extension port and does not have a PCIE slot. The operating system is Windows Embedded Standard 7, 32-bit, and it comes with an 80 GB solid-state drive (SSD) with MLC (multi-level cell) technology. The device is powered by a 24 V DC industrial power supply and does not include SIMATIC software.
Technical Specifications
- Display: 19" touch display
- USB Ports: 4 (2 at the back, 1 at the front)
- Ethernet: 10/100/1000
- Processor: Core I3-3217UE
- Memory: 4 GB
- Ethernet Ports: 2 x Gbit Ethernet (IE/PN)
- Extension Port: 1 x RS-232
- PCIE Slot: None
- Operating System: Windows Embedded Standard 7, 32-bit
- Storage: 80 GB SSD (MLC)
- Power Supply: 24 V DC industrial power supply
- Software: None (no SIMATIC software included)
Alarm/Error Codes
The provided information does not detail specific alarm or error codes for this product.
User Manuals
The Siemens Industry Mall and websites do not offer direct access to user manuals for this specific product. However, users can find general information and documentation for SIMATIC IPC 477D products on the Siemens website, including data sheets and service & support resources.
Troubleshooting
Troubleshooting information for this specific product is not readily available. However, general troubleshooting guides and FAQs for SIMATIC IPC 477D products can be accessed through the Siemens website.
Programming
The programming details for this product are not provided. For specific programming information, users should consult the user manual or contact Siemens support directly.
Installation
The installation details for this product are not provided. For specific installation instructions, users should consult the user manual or contact Siemens support directly.
