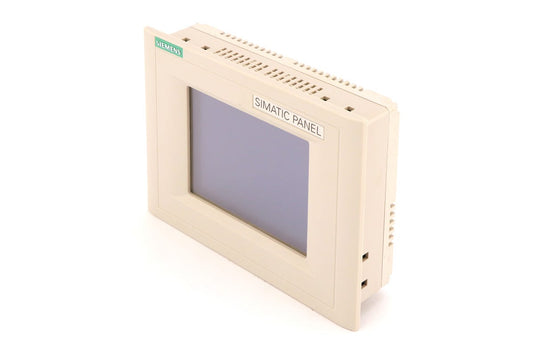

The Siemens part number 6AV6545-0BA15-2AX0 is a SIMATIC TOUCH PANEL, which is a human machine interface (HMI) device designed for use in industrial automation applications such as machine control, process monitoring, and data visualization. It features a 5.7-inch SNT display with a resolution of 320x240 pixels and is powered by a 24V DC power supply.
Technical Specifications
- Display: 5.7 inches, SNT
- Resolution: 320x240 pixels
- Power Supply: 24V DC
Alarm/Error Codes
The Siemens 6AV6545-0BA15-2AX0 Touch Panel does not provide specific information on alarm or error codes. However, it is designed for use in industrial automation applications where error handling and alarm management are crucial. The device is likely to have standard error handling mechanisms that can be configured and monitored through the user interface or programming software.
User Manuals
The user manual for the Siemens 6AV6545-0BA15-2AX0 Touch Panel is not readily available online. However, it is likely that the manual is provided by Siemens or the manufacturer of the device, and it may be available upon request or through the manufacturer's support resources.
Troubleshooting
Troubleshooting for the Siemens 6AV6545-0BA15-2AX0 Touch Panel would typically involve checking the power supply, display settings, and communication links. The device's user manual and technical documentation should provide detailed troubleshooting procedures. Additionally, Siemens or the manufacturer's support resources may offer troubleshooting guides or technical support for the device.
Programming
The Siemens 6AV6545-0BA15-2AX0 Touch Panel is designed for use with Siemens SIMATIC PLCs and other industrial automation systems. Programming for the device would typically involve using Siemens' programming software, such as SIMATIC STEP 7, to configure the device's user interface, set up communication links, and define the device's behavior in response to user input and system events.
Installation
The installation of the Siemens 6AV6545-0BA15-2AX0 Touch Panel typically involves mounting the device in a suitable location, connecting it to the power supply and any necessary communication links, and configuring the device's settings using the user interface or programming software. The device's user manual and technical documentation should provide detailed installation instructions.
