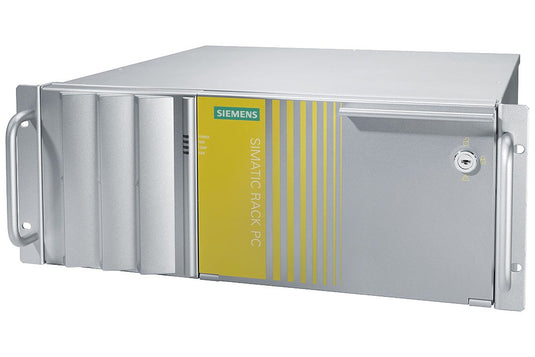

The Siemens part number 6AG4104-2CA12-4EX0 is a SIMATIC IPC547G, a rack PC designed for industrial automation. It is a spare part, and its details are available on the Siemens Industry Mall website. The product is a 19-inch rack PC with a height of 4U, featuring various interfaces on both the front and rear sides. These interfaces include two USB 3.0 ports on the front and two Intel Gigabit Ethernet ports, two PS/2 ports, and audio ports on the rear. The device also has seven slots for PCI Express and PCI cards, as well as temperature and fan monitoring capabilities, a watchdog, and a card retainer.
The SIMATIC IPC547G is equipped with a Core i5-6500 processor, which has four cores and four threads, running at a base clock speed of 3.2 GHz and a turbo boost of 3.6 GHz. The mainboard is based on the H110 chipset and supports a DVI-D display output.
The product details page on the Siemens Industry Mall website does not provide a picture of the product. However, it does offer services such as spare part delivery, repair, and exchange for this product. The user needs to log in to access these services.
The product is part of Siemens' SIMATIC IPC series, which is designed for industrial automation and control systems. It is likely used in various industries such as manufacturing, process control, and building automation, where reliable and efficient computing is crucial.
