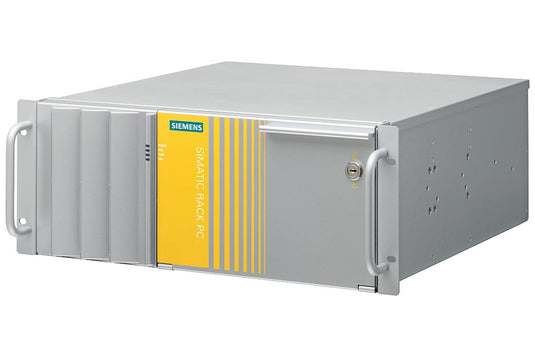

The Siemens part number 6AG4104-1CD14-1XX0 is a SIMATIC IPC RW-545A, a rack-based industrial PC designed for industrial automation applications. It features a 19-inch rack with four units, and its technical specifications include:
- Processors: The device is equipped with a chipset R680E, which supports a Core 2 Duo E8400 processor running at 3.0 GHz with a 1333 MHz FSB and 6 MB of L2 cache.
- Memory and Storage: The device comes with 2 GB of internally mounted DDR2 SDRAM in a dual-channel configuration and includes a RAID 1 setup with two 500 GB SATA hard drives for data mirroring.
- Interfaces and Connectivity: The SIMATIC IPC RW-545A has several interfaces for connectivity, including two Gigabit Ethernet ports (RJ45), one serial port (COM1), six USB ports on the backside, and two USB ports and two PS/2 ports on the front. It also features audio capabilities and seven expansion slots for PCI and PCIe cards.
- Power Supply and Temperature Control: The device is powered by an industrial power supply with a voltage range of 110/230V and includes a board retainer, temperature and fan control, and a watchdog for monitoring system status.
- Operating System and Software: The device comes with Windows XP Professional MUI (English, German, French, Italian, and Spanish) installed, but without any additional software.
- Dimensions and Mounting: The device is designed to fit in a 19-inch rack with four units and includes six drive bays, with three 5.25-inch and one 3.5-inch front-accessible bay, and two internal 3.5-inch bays.
The part number 6AG4104-1CD14-1XX0 is available from various suppliers, including and Novaut, with prices ranging from €2,190.00 to €2,857.33.
