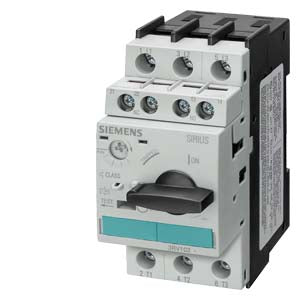

The Siemens part number 3RV1021-1JA15 is a circuit breaker designed for motor protection. It is classified as a CLASS 10 circuit breaker, which means it is suitable for applications that require high levels of protection against electrical faults. The breaker is adjustable from 7 to 10 amps and has a short-circuit release of 130 amps. It features a screw terminal and standard switching capacity.
Technical Specifications:
- Circuit breaker size: S0
- Motor protection classification: CLASS 10
- Adjustable current range: 7-10 amps
- Short-circuit release: 130 amps
- Terminal type: Screw terminal
- Switching capacity: Standard
Alarm/Error Codes:
No specific information on alarm or error codes for this product was found in the provided search results.
User Manuals:
A user manual for the Siemens 3RV1021-1JA15 is available from Control Parts. The manual describes the product as a manual motor protector adjustable from 7 to 10 AMPS, mounting on standard 35mm DIN rail, with an ON/OFF rotary handle and 1 normally open (NO) contact.
Troubleshooting:
No specific troubleshooting information was found for this product in the provided search results.
Programming:
No programming information was found for this product in the provided search results.
Installation:
No specific installation instructions were found for this product in the provided search results. However, general guidelines for installing circuit breakers can be found in industry standards and manufacturer documentation.
