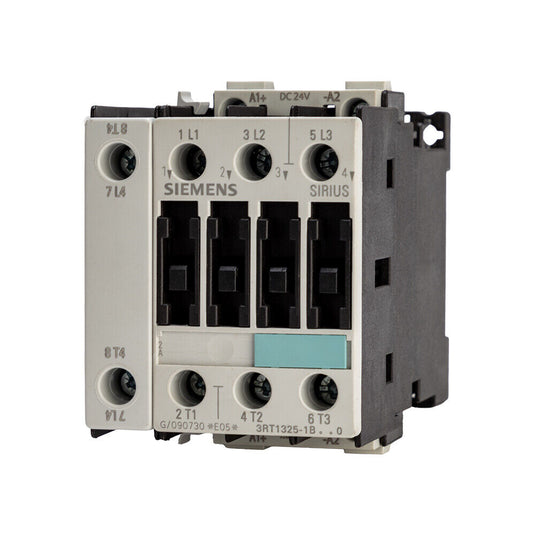

The Siemens part number 3RT1325-1BB40 is a contactor designed for use in industrial automation applications. It is an AC-1 contactor with a maximum current rating of 35 amps and operates at a DC voltage of 24 volts. The contactor has a 4-pole configuration and is of size S0, with screw terminals for connection. It is designed for use in environments with a degree of pollution of 3 and has a protection class of IP20 on the front and IP20 on the terminals.
Technical Specifications
- Maximum current rating: 35 amps
- Operating voltage: 24 volts DC
- Number of poles: 4
- Size: S0
- Connection type: Screw terminals
- Degree of pollution: 3
- Protection class: IP20 on the front and IP20 on the terminals
- Mechanical service life (switching cycles): Typical 10,000 cycles
Alarm/Error Codes
No specific information on alarm or error codes for this product was found in the provided search results.
User Manuals
The user manual for this product is not available online. It is recommended that users contact Siemens directly for access to the manual or seek assistance from a qualified professional.
Troubleshooting
Troubleshooting information for this product is not readily available online. It is suggested that users consult the user manual or contact Siemens technical support for assistance with troubleshooting issues.
Programming
The contactor is a basic electrical component and does not require programming. It is designed to be used in a simple on/off configuration.
Installation
The installation of this contactor should be done by a qualified electrician or automation professional. The contactor should be installed in a location that is accessible for maintenance and in compliance with local electrical codes and regulations.
