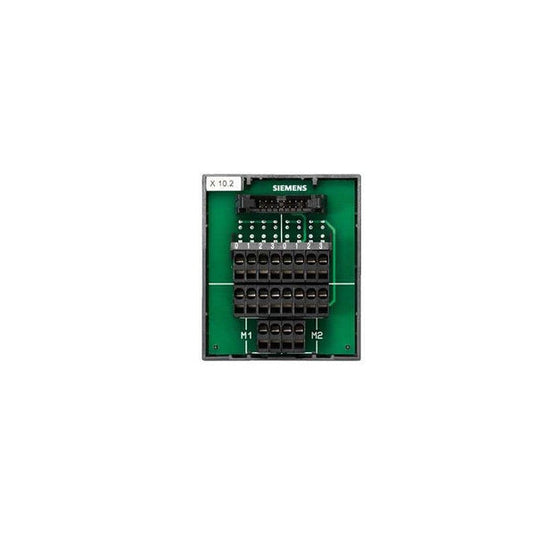

The Siemens part number 6ES7924-0BB10-0AB0 is a terminal block designed for industrial automation applications. It features eight channels with digital output and two groups of five multiplication terminals. The terminal block uses spring terminals without LED indicators and is packaged in a single unit of 16 pole IDC connectors.
Technical Specifications
- Channels: 8
- Digital Output: 2 A
- Multiplication Terminals: 2 groups of 5 each
- Terminal Type: Spring Terminal without LED
- Package: Single Unit of 16 Pole IDC Connectors
Alarm/Error Codes
No specific alarm or error codes are documented for this part number. It is primarily an electrical component used for connecting and routing signals in industrial automation systems.
User Manuals
The user manual for this part number is not readily available online. It is recommended that users consult the documentation provided by Siemens or the equipment manufacturer for detailed instructions on installation, operation, and maintenance.
Troubleshooting
Troubleshooting for this part number is typically done by Siemens' technical support team or authorized service providers. It involves identifying and resolving issues related to the terminal block's functionality, such as faulty connections or damage to the terminals. Users can contact Siemens or authorized service providers for assistance.
Programming
This part number does not require programming. It is a passive electrical component used for connecting and routing signals in industrial automation systems. Programming is typically done on the PLC or other control devices connected to the terminal block.
Installation
The installation of the 6ES7924-0BB10-0AB0 terminal block involves connecting the IDC connectors to the desired channels on the PLC or other control devices. The terminal block should be securely fastened to a suitable surface to prevent damage or disconnection during operation. It is recommended that users follow the manufacturer's guidelines for installation and any specific safety precautions.
In summary, the Siemens part number 6ES7924-0BB10-0AB0 is a terminal block designed for industrial automation applications. It provides eight channels with digital output and two groups of five multiplication terminals. The terminal block uses spring terminals without LED indicators and is packaged in a single unit of 16 pole IDC connectors. Technical specifications, troubleshooting, and installation are detailed above, while alarm/error codes and user manuals are not readily available online.
