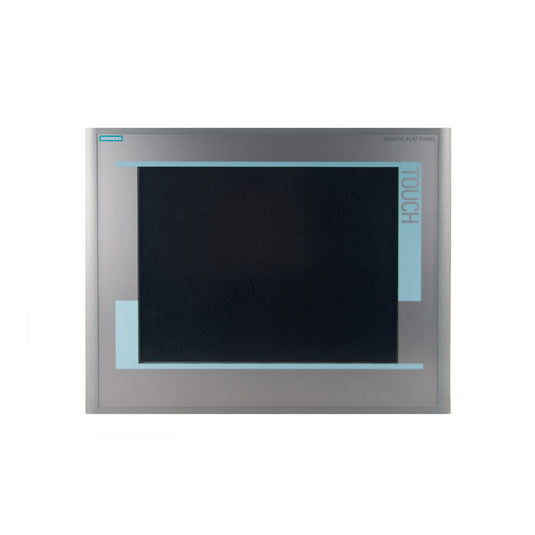

The Siemens part number 6AV7861-4TB10-1AA0 is a SIMATIC Flat Panel 17" Touch Extended display with a 1280x1024 pixel resolution. It is designed for use with 24V DC and 120/240V AC power supplies and features VGA and DVI-D interfaces. This display is suitable for industrial applications and is compatible with a variety of systems, including those from Siemens.
Technical Specifications
- Display Size: 17 inches
- Resolution: 1280x1024 pixels
- Power Supply: 24V DC and 120/240V AC
- Video Interfaces: VGA, DVI-D
Alarm/Error Codes
No specific alarm or error codes are listed for this product. It is likely that any errors or issues would be specific to the system or application in which it is used and would require troubleshooting and resolution based on the system's documentation and support resources.
User Manuals
The user manual for this product is not directly accessible through the provided search results. However, it can be obtained by contacting Siemens support or the manufacturer's documentation portal, if available.
Troubleshooting
Troubleshooting for this product would likely involve checking the display's connections, power supply, and system settings. It may also involve consulting the user manual or contacting Siemens support for specific guidance.
Programming
This product does not require programming. It is a display device designed for use with existing systems and does not have the capability to be programmed.
Installation
The installation process for this product would typically involve connecting the display to the system or application it is intended to support, ensuring proper power supply, and configuring the display settings according to the system's requirements. The specific installation steps may vary depending on the system and application being used.
