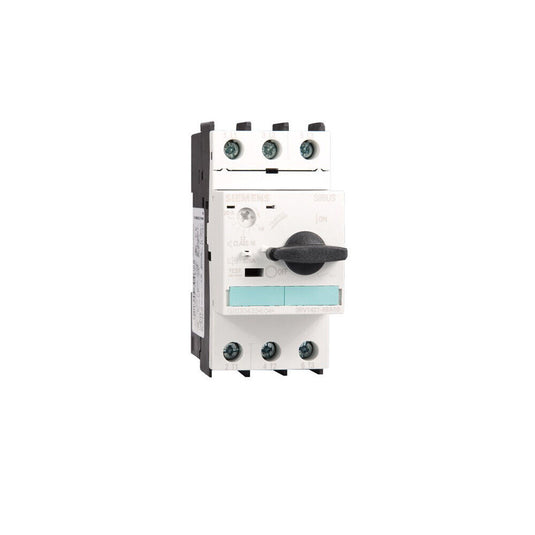

The Siemens part number 3RV1421-1BA10 is a circuit breaker designed for transformer protection. It has a size of S0 and is capable of handling a short-circuit release of 42 amps. The breaker also features an A-release with a current rating of 1.4 to 2 amps. It has a screw terminal connection and a standard switching capacity.
Technical Specifications
- Size: S0
- Transformer Protection: Yes
- A-Release Current Rating: 1.4 to 2 amps
- Short-Circuit Release: 42 amps
- Connection Type: Screw terminal
- Switching Capacity: Standard
Alarm/Error Codes
No specific alarm or error codes are mentioned in the available documentation for this part number. It is likely that these codes would be detailed in the user manual or technical documentation specific to the application or system in which the circuit breaker is used.
User Manuals
User manuals for this specific part number are not readily available online. However, Siemens provides comprehensive documentation for its products, including user manuals, which can be accessed through their official website or industry-specific platforms.
Troubleshooting
Troubleshooting for this circuit breaker would typically involve checking the breaker's status, ensuring proper connections, and verifying the transformer's protection settings. If issues persist, it may be necessary to consult the user manual or contact a qualified technician or Siemens support.
Programming
This circuit breaker does not require programming as it is a standard electrical component designed for transformer protection. It operates based on its technical specifications and does not have any programmable features.
Installation
The installation of this circuit breaker should be done in accordance with the manufacturer's guidelines and local electrical codes. It is essential to ensure proper connections and grounding to ensure safe and reliable operation.
