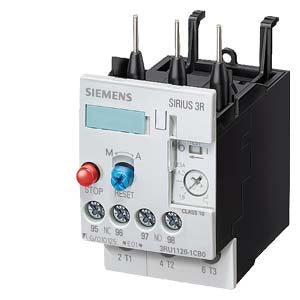

The Siemens part number 3RU1126-1KB0 is an overload relay designed for motor protection. It is classified as a Class 10 contactor mounting overload relay, which means it is suitable for use in a variety of industrial applications where motor protection is crucial. The relay is rated for currents between 9 and 12.5 amps and is designed to detect and respond to overload conditions in motors.
Technical Specifications
- Current Rating: 9-12.5 amps
- Class: Class 10
- Mounting: Contacting mounting for contactors
- Description: Thermal overload relay for motor protection
Alarm/Error Codes
The Siemens 3RU1126-1KB0 overload relay does not provide specific alarm or error codes. It is designed to automatically disconnect the motor circuit when an overload condition is detected, providing a simple and reliable method for motor protection.
User Manuals
The user manual for the Siemens 3RU1126-1KB0 overload relay is not readily available online. However, it can be obtained from authorized Siemens distributors or through the Siemens website.
Troubleshooting
Troubleshooting for the Siemens 3RU1126-1KB0 overload relay typically involves checking for signs of overheating or excessive current draw in the motor. If the relay has tripped, it may be reset by manually switching the contactor back to the normal position. If the issue persists, it is recommended to consult the user manual or contact a qualified electrician for further assistance.
Programming
The Siemens 3RU1126-1KB0 overload relay does not require programming. It is designed to operate automatically based on the detected current levels, without the need for user input or configuration.
Installation
The installation of the Siemens 3RU1126-1KB0 overload relay typically involves connecting it to the motor circuit and ensuring proper wiring and grounding. The relay should be installed in a location where it is easily accessible for maintenance and testing. It is recommended to consult the user manual for detailed installation instructions.
