Siemens Part Number 6SL3243-0BB30-1FA0: Description and Technical Specifications

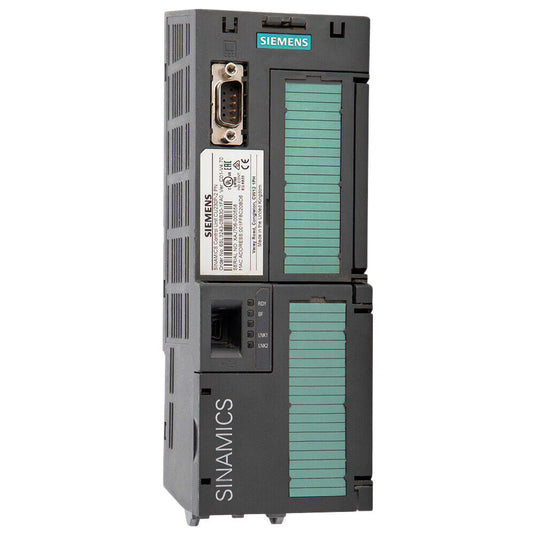

The Siemens part number 6SL3243-0BB30-1FA0 is a SINAMICS G120 Control Unit CU230P-2 PN, which integrates PROFINET communication. This control unit is designed to manage a range of inputs and outputs, including digital inputs (DI), digital outputs (DO), analog inputs (AI), and analog outputs (AO). Additionally, it features a motor temperature sensor input and provides two power supply outputs (PSU-out) at 10 V DC and 24 V DC, as well as one power supply input (PSU-in) at 24 V DC.
Technical Specifications
- PROFINET Integration: The unit integrates PROFINET communication for seamless connection to industrial networks.
-
Inputs and Outputs:
- Digital Inputs (DI): 6 DI
- Digital Outputs (DO): 3 DO
- Analog Inputs (AI): 4 AI
- Analog Outputs (AO): 2 AO
- Motor Temperature Sensor Input: 1
- Power Supply Outputs (PSU-out): 2, with outputs of 10 V DC and 24 V DC
- Power Supply Input (PSU-in): 1, with an input of 24 V DC
Alarm and Error Codes
The SINAMICS G120 Control Unit CU230P-2 PN, as part of the SINAMICS G120 series, likely follows the standard Siemens alarm and error code structure. However, specific details on the alarm and error codes for this particular part number are not readily available in the provided search results.
User Manuals
User manuals for the SINAMICS G120 Control Unit CU230P-2 PN are available on the Siemens Industry Mall website. These manuals provide detailed information on the unit's operation, configuration, and troubleshooting procedures.
Troubleshooting
Troubleshooting procedures for the SINAMICS G120 Control Unit CU230P-2 PN are likely outlined in the user manuals provided by Siemens. These procedures would involve checking the unit's configuration, monitoring its performance, and addressing any errors or alarms that may occur.
Programming
The programming of the SINAMICS G120 Control Unit CU230P-2 PN is likely done through Siemens-specific software tools, such as SIMATIC STEP 7 or SIMATIC WinCC. These tools allow users to configure the unit's inputs and outputs, set up communication protocols, and monitor its performance.
Installation
The installation of the SINAMICS G120 Control Unit CU230P-2 PN typically involves connecting the unit to the desired inputs and outputs, configuring the unit's communication settings, and ensuring proper power supply and cooling arrangements. Detailed installation instructions are likely provided in the user manuals or through Siemens technical support resources.
