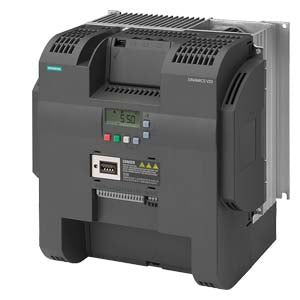

The Siemens part number 6SL3210-5BE31-8CV0 is a SINAMICS V20 inverter drive designed for use in industrial applications. It operates within a voltage range of 380-480 volts AC at a frequency of 47-63 Hz, with a rated power of 18.5 kW and an overload capacity of 150% for 60 seconds. The device also supports a small output overload of 22 kW with 110% overload for 60 seconds.
Technical Specifications
- Voltage: 380-480 V AC
- Frequency: 47-63 Hz
- Rated Power: 18.5 kW
- Overload Capacity: 150% for 60 seconds
- Small Output Overload: 22 kW with 110% overload for 60 seconds
- Current Rating: 75 A
- Enclosure Volume: 0.06 m³ (1.7 ft³)
Alarm/Error Codes
The SINAMICS V20 inverter drive does not provide specific information on alarm or error codes in the provided documentation. However, it is likely that the device follows standard industry practices and uses standardized error codes that are documented in the user manual or technical documentation specific to the device.
User Manuals
The user manual for the SINAMICS V20 inverter drive is available on the Siemens Industry Online Support website. It provides detailed information on the device's installation, operation, and maintenance, including electrical and mechanical installation procedures, commissioning, and troubleshooting.
Troubleshooting
Troubleshooting procedures for the SINAMICS V20 inverter drive are detailed in the user manual and involve checking for common issues such as incorrect wiring, faulty components, or environmental factors that could affect the device's performance. The manual also provides a list of faults and alarms, along with troubleshooting steps for each.
Programming
The SINAMICS V20 inverter drive is designed to operate with standardized programming protocols and interfaces. It supports various communication protocols, including PROFIBUS, PROFINET, and EtherNet/IP, which are commonly used in industrial automation applications. The device's programming is typically done using specialized software tools provided by Siemens or through the built-in BOP (Basic Operation Panel) or SINAMICS V20 Smart Access.
Installation
The installation of the SINAMICS V20 inverter drive involves mechanical and electrical installation procedures. Mechanical installation includes mounting the device in a suitable enclosure and ensuring proper ventilation. Electrical installation involves connecting the device to the power supply and configuring the wiring according to the device's specifications.
Additional Information
The SINAMICS V20 inverter drive is designed to operate in industrial environments and is built with safety features to prevent accidents and ensure safe operation. It is recommended to follow the safety instructions provided in the user manual and to ensure that all personnel working with the device are properly trained.
