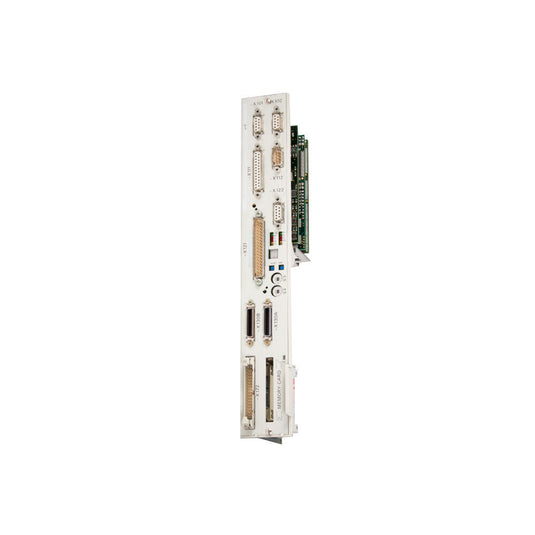

The Siemens part number 6FC5357-0BA21-1AE0 is a component of the SINUMERIK 840D NCU 572, a control unit designed for use in industrial automation applications. This part number is associated with a standard version of the SINUMERIK 840D NCU 572, which supports up to 5 axes/spindles and has a memory capacity of 1.5 MB for the numerical control (NC) and 64 KB for the programmable logic controller (PLC). The unit is prepared for PROFIBUS DP and comes with a cable for unit bus connectivity.
Technical Specifications
-
Memory Capacity:
- Numerical Control (NC): 1.5 MB
- Programmable Logic Controller (PLC): 64 KB
- Axes/Spindles: 5 (max. 8)
- Peripherals: S7 IM 361
- Connectivity: PROFIBUS DP
- Weight: 2 KG
Alarm/Error Codes
No specific information on alarm or error codes for this part number was found. It is recommended to consult the user manual or product documentation for detailed information on error handling and troubleshooting procedures.
User Manuals
User manuals for the SINUMERIK 840D NCU 572 are available on the Siemens support website. These manuals provide detailed instructions on the operation and configuration of the control unit.
Troubleshooting
Troubleshooting procedures for the SINUMERIK 840D NCU 572 are typically outlined in the user manual and may involve checking for proper connectivity, configuration, and power supply. If issues persist, it is recommended to consult the user manual or contact Siemens technical support.
Programming
The programming of the SINUMERIK 840D NCU 572 involves creating and loading a program using a programming software. The specific programming procedures and software used may vary depending on the application and the user's requirements. It is recommended to consult the user manual or Siemens documentation for detailed information on programming the control unit.
Installation
The installation of the SINUMERIK 840D NCU 572 typically involves connecting the control unit to the necessary peripherals and configuring the system according to the specific application requirements. It is recommended to consult the user manual or Siemens documentation for detailed information on the installation process.
In summary, the Siemens part number 6FC5357-0BA21-1AE0 is a component of the SINUMERIK 840D NCU 572, a control unit designed for industrial automation applications. It supports up to 5 axes/spindles, has a memory capacity of 1.5 MB for NC and 64 KB for PLC, and is prepared for PROFIBUS DP connectivity. The technical specifications, user manuals, troubleshooting procedures, programming, and installation of this part number are detailed in the Siemens documentation and user manual.
