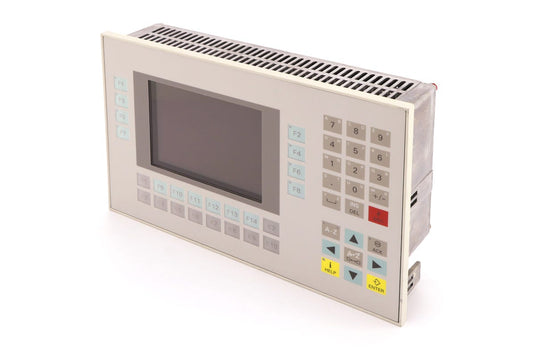

The Siemens part number 6AV3525-1EA01-0AX0 refers to the SIMATIC OP25/A Operator Panel, a device used in industrial automation systems. Here's a breakdown of its key features and technical specifications:
Technical Specifications
- Display Type: Monochrome (Pixel Graphics)
- Power Supply: 24VDC
- Integrated Interfaces: 2x TTY/V.24, X.27/TTY, MPI/PPI
- Character Size: 5 mm
- Number of Function Keys: 24
- System Keys: Yes
Alarm/Error Codes
The Siemens 6AV3525-1EA01-0AX0 does not provide specific information on alarm or error codes. It is recommended to consult the user manual or contact Siemens support for detailed information on error handling and troubleshooting.
User Manuals
The user manual for the Siemens 6AV3525-1EA01-0AX0 is available on the Siemens Industry Mall website. It provides detailed instructions on the panel's operation, configuration, and troubleshooting.
Troubleshooting
Troubleshooting for the Siemens 6AV3525-1EA01-0AX0 typically involves checking the power supply, ensuring proper connections, and verifying the configuration. If issues persist, it is recommended to consult the user manual or contact Siemens support for further assistance.
Programming
The Siemens 6AV3525-1EA01-0AX0 is designed for use with SIMATIC S7-200 and S7-300 controllers. Programming involves configuring the panel's interfaces and setting up the display to interact with the controller. The user manual provides detailed instructions on programming the panel.
Installation
Installation of the Siemens 6AV3525-1EA01-0AX0 typically involves mounting the panel, connecting the power supply, and configuring the interfaces. The user manual provides detailed instructions on installation procedures.
Download the Data Sheet Go to product
