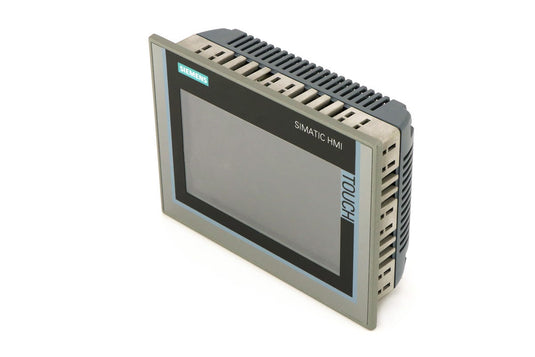

The Siemens part number 6AV2124-0GC01-0AX0 is associated with the Siemens TP700 Comfort, which is a touch screen panel designed for use with the Simatic line of programmable logic controllers (PLCs). The panel is part of the HMI (Human-Machine Interface) family of products from Siemens, which are designed to provide a user-friendly interface for operators to interact with industrial control systems.
Technical Specifications
- The panel supports a variety of communication protocols, including TCP/IP and UDP/IP.
- It can be powered by an external 24VDC supply.
- The panel supports Ring, Star, and Tree Topology configurations.
Alarm/Error Codes
No specific information on alarm or error codes for this part number was found in the search results.
User Manuals
The user manual for the Siemens TP700 Comfort is available in PDF format from the Siemens Industry Online Support website.
Troubleshooting
Troubleshooting information for the Siemens TP700 Comfort is available in the user manual and on the Siemens Industry Online Support website.
Programming
The panel is designed to be used with the Simatic line of programmable logic controllers (PLCs), which are programmed using the Simatic Step 7 software. The panel itself does not require programming, but rather is configured to interact with the PLC through the communication protocols supported.
Installation
The installation of the Siemens TP700 Comfort involves connecting it to the PLC and configuring the communication protocols. The panel should be installed in a location that is easily accessible to the operator and provides a clear view of the screen. The panel should also be installed in a location that is protected from physical damage and electrical interference.
