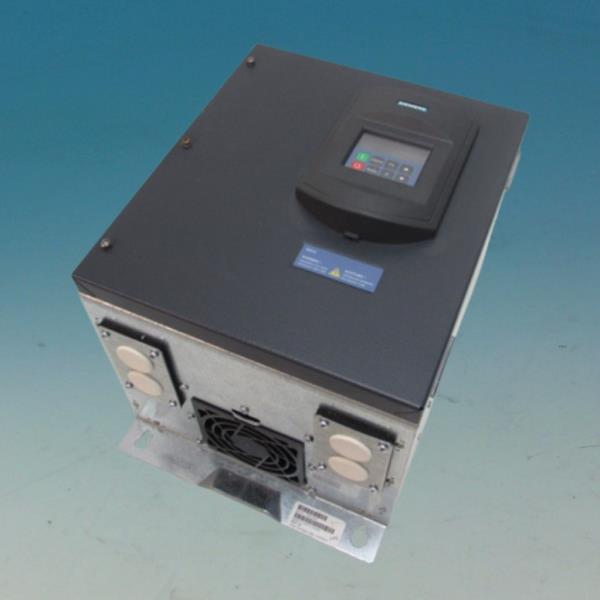

The Siemens part number 6SE6436-2BD21-1AA0 is a frequency converter, specifically a SED2 VFD (Variable Frequency Drive) designed for use in industrial applications. The SED2 VFD is a product of the Siemens Automation and Drives division, which provides a comprehensive range of automation solutions for various industries.
Technical Specifications
The technical specifications for the 6SE6436-2BD21-1AA0 SED2 VFD include:
- Power Rating: The drive is designed to operate with a power rating of up to 5.5 kW (7.5 HP).
- Voltage: The drive supports both single-phase and three-phase input voltages, ranging from 220V to 380V.
- Frequency Range: The drive can operate within a frequency range of 0 Hz to 400 Hz.
- Control: The drive is equipped with a microprocessor-based control system that provides precise control over the motor speed and torque.
- Communication: The drive supports various communication protocols, including Profibus, Modbus, and Ethernet.
Alarm/Error Codes
The SED2 VFD, like other Siemens products, uses a standardized error code system. The error codes are used to identify and diagnose issues with the drive. These codes are typically displayed on the drive's display screen or communicated through the communication protocols. The specific error codes and their meanings can be found in the user manual and the technical documentation provided by Siemens.
User Manual
The user manual for the SED2 VFD provides detailed information on the installation, operation, and maintenance of the drive. It includes instructions on how to configure the drive, set up the control system, and troubleshoot common issues. The manual also covers safety precautions and guidelines for working with the drive.
Troubleshooting
Troubleshooting the SED2 VFD typically involves identifying the error code displayed on the drive's display screen. The error code can be used to locate the specific issue and guide the repair process. The user manual and technical documentation provide detailed information on troubleshooting procedures and common issues that may arise during operation.
Programming
The SED2 VFD can be programmed using the Siemens SIMATIC software, which provides a comprehensive range of programming tools and interfaces. The programming process involves setting up the control system, defining the motor control parameters, and configuring the communication protocols.
Installation
The installation process for the SED2 VFD typically involves connecting the drive to the motor, power supply, and control system. The drive must be properly grounded and secured to prevent damage or electrical shock. The user manual and technical documentation provide detailed information on the installation process and safety guidelines.
In summary, the Siemens part number 6SE6436-2BD21-1AA0 is a SED2 VFD designed for use in industrial applications. It is a powerful and versatile drive that provides precise control over motor speed and torque. The technical specifications, alarm/error codes, user manual, troubleshooting procedures, programming, and installation guidelines for the drive are all detailed in the user manual and technical documentation provided by Siemens.
