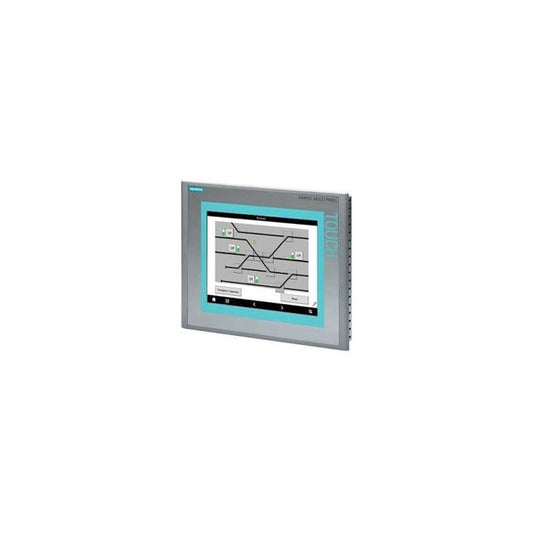

The Siemens part number 6AV6643-0CB01-1AX5 is associated with the Siemens MP277 8.4" Touch Multi Panel. This part is a spare component designed for the repair and replacement of damaged or malfunctioning parts in the MP277 8.4" Touch Multi Panel. The device is a part of the Simatic MP277 8.4" Touch line, which is a line of industrial control systems designed for use in various industries such as manufacturing, energy, and water treatment.
Technical Specifications:
- Screen diagonal: 8.4 inches
- Display design: TFT
- Warranty: 365 days
- Product line: Siemens MP277 8.4" Touch
- Active power input, typical: 12 W
- MTBF backlighting (at 25°C): 50,000 hours
- Number of colors: 65,536
- Mounting position: Vertical
- Type of supply voltage: DC
Alarm/Error Codes:
The Siemens MP277 8.4" Touch Multi Panel does not have a specific list of alarm or error codes provided in the available documentation. However, it is likely that the device follows standard Siemens error code conventions, which are detailed in the Siemens documentation and user manuals.
User Manuals:
The Siemens MP277 8.4" Touch Multi Panel has several user manuals available for download, including:
- Siemens HMI MP277-8 6AV6643-0CB01-1AX0 Operating Instructions
- Siemens Simatic MP277 Panel manual
- Siemens Simatic MP 277 8 Touch manual
These manuals provide detailed information on the device's operation, configuration, and troubleshooting.
Troubleshooting:
Troubleshooting for the Siemens MP277 8.4" Touch Multi Panel typically involves identifying and addressing issues related to the device's hardware and software components. This includes checking for loose connections, faulty components, and incorrect configuration settings. The user manuals and Siemens documentation provide detailed troubleshooting guides for specific issues.
Programming:
The Siemens MP277 8.4" Touch Multi Panel is designed to be programmed using Siemens software such as WinCC flexible 2005 Standard SP1. The device's programming involves configuring the device's settings, such as the time zone, and setting up the device to communicate with other devices on a network.
Installation:
The Siemens MP277 8.4" Touch Multi Panel is designed for installation in industrial environments. The device's installation typically involves mounting the device in a suitable location, connecting it to a power source and any necessary peripherals, and configuring the device's settings. The user manuals and Siemens documentation provide detailed installation guides for specific scenarios.
In summary, the Siemens part number 6AV6643-0CB01-1AX5 is a spare component for the Siemens MP277 8.4" Touch Multi Panel, a device used in industrial control systems. The device has specific technical specifications, user manuals, and troubleshooting guides available for its operation and maintenance.
Download the Data Sheet Go to product
