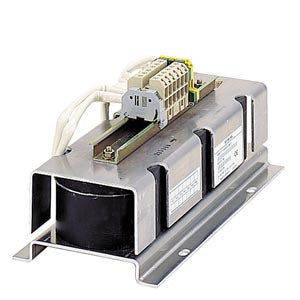

The Siemens part number 6SN1111-0AA00-0BA1 is a line reactor, specifically designed for use in the SIMODRIVE 611 HF system. It is a three-phase choke line reactor with a power rating of 16 kW. This component is used in industrial settings to manage electrical power and ensure efficient operation of equipment.
Technical Specifications:
- Power rating: 16 kW
- Phase: 3-phase
- Type: Choke line reactor
Alarm/Error Codes:
No specific information available on alarm or error codes for this particular part number. It is likely that any issues with the reactor would be addressed through the SIMODRIVE system's diagnostic capabilities or through the troubleshooting process outlined below.
User Manuals:
User manuals for the SIMODRIVE system, which includes the 6SN1111-0AA00-0BA1 line reactor, are available from Siemens and other authorized sources. These manuals provide detailed information on installation, operation, and troubleshooting procedures.
Troubleshooting:
Troubleshooting for the line reactor would typically involve checking for any signs of physical damage or overheating, as well as monitoring the system's performance for any anomalies in power flow or voltage levels. If issues persist, it may be necessary to consult the SIMODRIVE system's user manual or contact a trained technician for further assistance.
Programming:
Programming for the SIMODRIVE system, including the 6SN1111-0AA00-0BA1 line reactor, is typically done using specialized software designed for the system. This software allows users to configure the system's operation and monitor its performance.
Installation:
Installation of the line reactor should be done in accordance with the manufacturer's guidelines and local electrical codes. This typically involves connecting the reactor to the power source and the equipment it is designed to support, ensuring proper grounding and insulation, and configuring the system's settings as needed.
